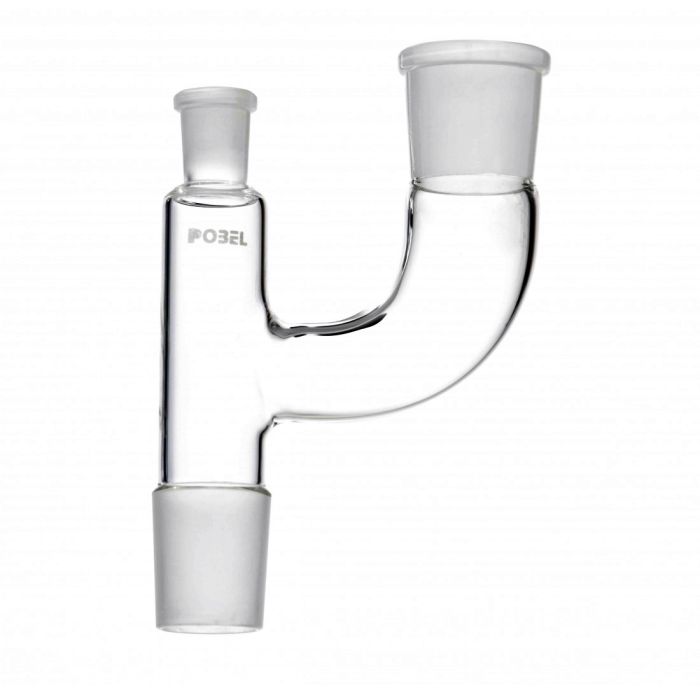

Claisen Adapter 3 Joints Borosilicate DIN 12594

Bifurcated Claisen-type adapter with 3 standardised ground glass joints, manufactured in borosilicate glass to DIN 12594. Allows two accessories to be connected simultaneously to the same flask — the standard solution when the setup requires both a thermometer and an addition funnel, or when working with two columns in parallel.

Specifications

• Material: Borosilicate glass
• Standard: DIN 12594
• Joints: 3, standardised ground glass
• Configuration: Bifurcated Claisen-type

Typical Applications

Fractional distillation with simultaneous temperature monitoring. Reflux reactions with controlled reagent addition. Setups where the flask requires more than one active inlet at the same time.

Widely used in organic chemistry, synthesis, and quality control laboratories where glassware assemblies are complex and flask neck space is limited.

Compatibility

Standardised ground glass joints fit thermometers, addition funnels, condensers, and Vigreux columns of the corresponding cone size. Compatible with all standardised glassware in the catalogue.

Technical Data

• Material: Borosilicate glass
• Manufacturing standard: DIN 12594
• Number of joints: 3
• Type: Claisen, bifurcated
