Autoclave Med 20

Autoclave with pressure regulator thermostat of 1 and 2 bar. temperatures 121 ºC and 134 ºC.

Safety autoclave Med 20

SAFETY VALVE: PREVENTS THE PRESSURE WITHIN THE AUTOCLAVE OVERPASSING THE MAXIMUM SET LIMIT. SAFETY PRESSURE: DISCONNECTS POWER TO THE HEATER IN CASE OF OVERPASSING THE PRESSURE SET LIMIT. SAFETY THERMOSTAT: DISCONNECTS THE HEATING IN CASE OF OVERTEMPERATURE OR LACK OF WATER IN THE TANK. THERMALLY INSULATED LID MADE OF MOLDED THERMOPLASTIC.

Common features autoclaves Micro 8, Med 12 y Med 20 models

AISI 304 stainless steel external case and top. Stainless steel chamber and lid, with easy opening. INCOLOY special stainless steel heater element, which provides long life, low corrosion and high temperatures resistance. Manual air purge when starting (“MICRO 8” model). Automatic atmospheric purge (“MED 12” and “MED 20” models). Safety device to prevent lid opening. Starting main switch.

Control panel autoclave Med 20

1. Pressure gauge. 2. Over temperature alarm light indicator. 3. Door open light indicator. 4. Sterilization phase light indicator. 5. Sterilization end of cycle light indicator. 6. Pressure selector 121 ºC or 134 ºC. 7. Light indicator at 121 ºC. 8. Light indicator at 134 ºC. 9. Timing from 0 to 60’.

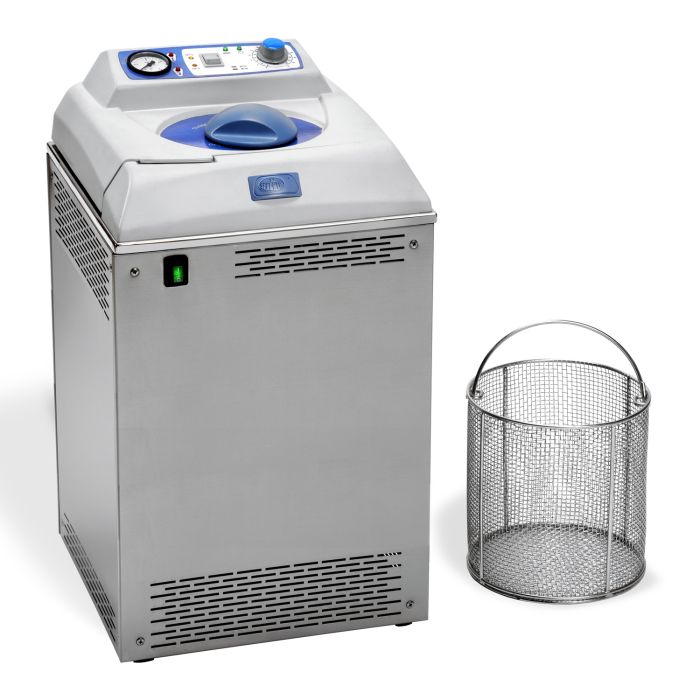

Autoclave med 20 comes complete with a stainless steel wire basket of Ø 22x24 cm and Ø 22x14 cm
