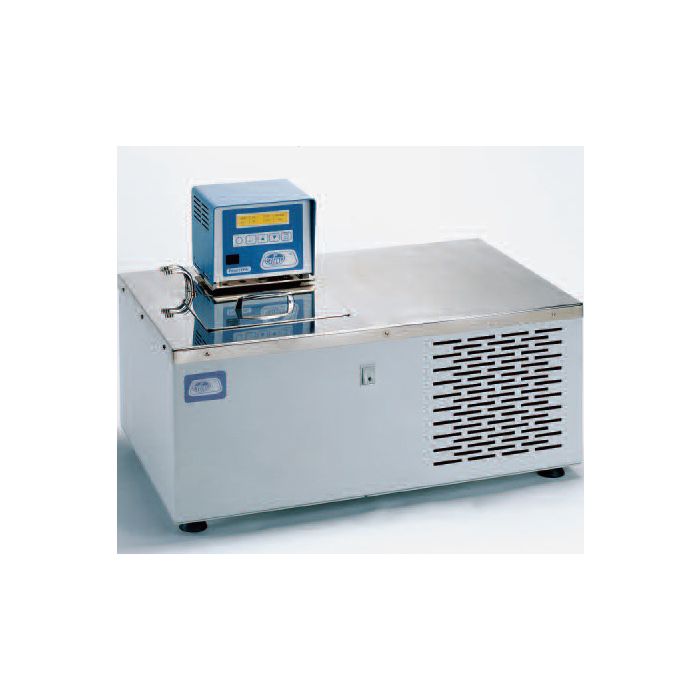

frigiterm-30 - range -30...100ºc, maximum volume 8 l

REFRIGERATED RECIRCULATION BATHS ADJUSTABLE TEMPERATURE FROM -10°C TO 100°C. STABILITY: 0°C TO 100°C, ±0.05°C / -10°C, ±0.1°C.
ADJUSTABLE TEMPERATURE FROM -30°C TO 100°C. STABILITY: 0°C TO 100°C, ±0.05°C / -30°C, ±0.2°C. SET ERROR : ±1°C. RESOLUTION: 0.1°C.

SAFETY

STANDARD DIN 12879.2 SAFETY OVER TEMPERATURE THERMOSTAT WITH ADJUSTABLE MANUAL RESET LOW LIQUID LEVEL SENSOR PROTECTION.

COMMON FEATURES

Microprocessor temperature control. The following parameters can be configured and shown on the LCD display:

• Maximum and minimum temperature limits.
• Select °C or °F
• Display resolution 0.1 °C
• External temperature (Probe).
• Over temperature set limits for alarm.
• Calibration
• Low liquid level indicator.

Temperature probe Pt 100.
Heating element made of stainless steel INCOLOY resistant to high temperatures and corrosive environments.
Circulation Pump with adjustable flow rate suitable for external temperature control for: (Polarimeters, refractometers and viscometers, etc).
Cooling coil to maintain ambient temperatures using tap water.
External temperature control connection using a Pt 100 probe  RS-232 interface for computer control or printing data.
External metal case coated in a corrosive resistant epoxy.
All parts in contact with liquid are made of AISI 304 stainless steel.

FEATURES

Maximum working volume to maintain maximum temperature: 8 litres.
AISI 304 stainless steel top and lid with an inner tank of AISI 310 stainless steel.
Complete with a pump for internal and external liquid circulation with push on tube connectors for inlet and outlet.
A drain tap is placed at the side of the unit.
A hermetically sealed compressor is mounted on anti-vibration mounts.
A RS232 interface for connection to a printer or computer.
