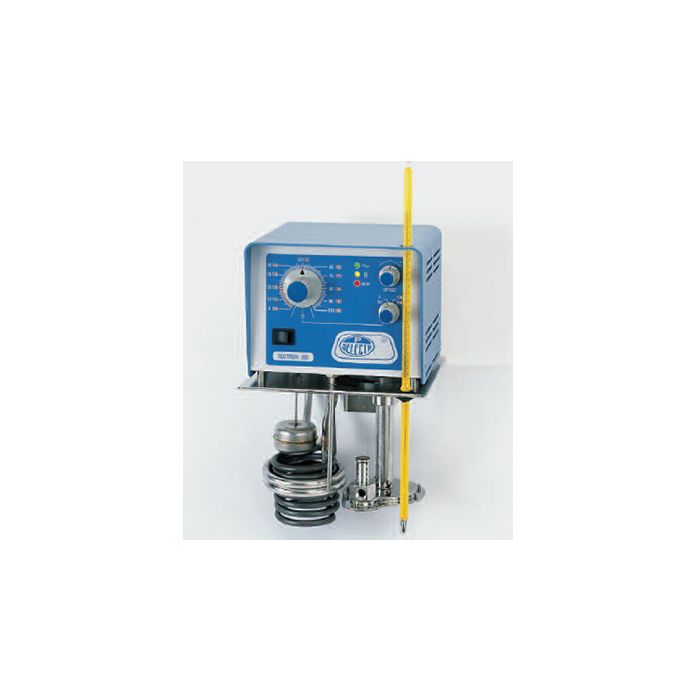

inmersion thermostat with analogue control "tectron 200"
immersion thermostat for bath. adjustable temperatures from ambient +5°c to 100°c.
In stock
SKU:
3473200
€865.03
IMMERSION THERMOSTAT FOR BATH. ADJUSTABLE TEMPERATURES FROM AMBIENT +5°C TO 100°C.
SAFETY
STANDARD DIN 12879.2 ADJUSTABLE OVER TEMPERATURE SAFETY THERMOSTAT WITH MANUAL RESET AND LOW LIQUID LEVEL FLOAT SENSOR.
COMMON FEATURES
Temperature sensor: Pt 100 probe. Maximum volume at maximum attainable temperature: 20 Iitres.
Circulation pump with external and internal adjustable flow.
Cooling coil for maintaining ambient temperature using tap water.
External case made of metal with a epoxy corrosive resistant coating, all parts in contact with liquid are made of AISI 304 stainless steel.
Fixed to the tank by a clamp and screw nut at the back or extension bridge that can be added as an accessory.
Minimum fixing height 14 cm.
CONTROL PANEL
Main power switch with power “ON” indicator lamp.
Temperature selector.
Adjustable fine control OFFSET of 1 °C.
Heater on indicator lamp.
Indicator lamp showing alarm status.
Temperature selector rang: de 0 a 100 y de 100 a 200°C.
| Brand | JP Selecta |
|---|
