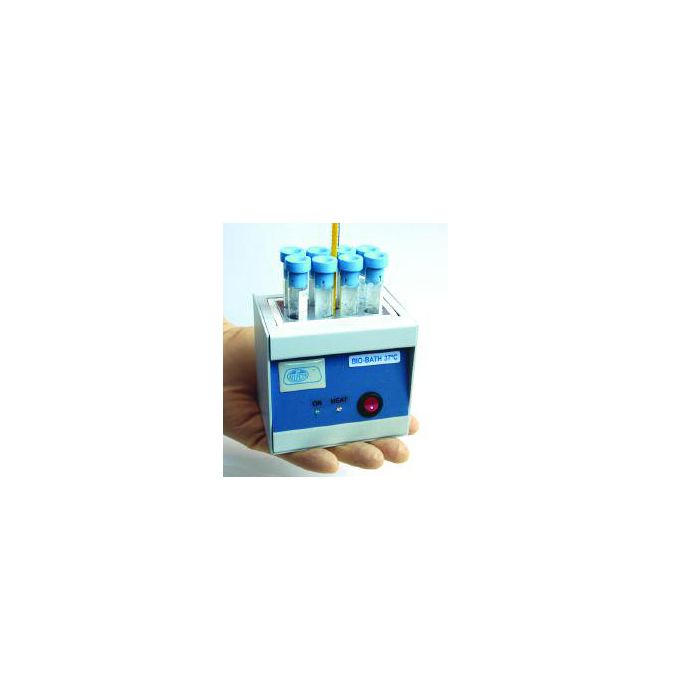

metallic thermostat dry block "bio-bath"

THERMOSTAT DRY BLOCK HEATER FOR TUBES WITH DIGITAL ELECTRONIC CONTROL OF TEMPERATURE AND TIME. TEMPERATURE CONTROLLABLE FROM 30°C TO 200°C.  NO LIQUID CONTACT, NO RISK OF EVAPORATION. SELECTION OF BLOCKS FOR DIFFERING TUBE DIAMETERS. STABILITY SIZES ±0.75°C. SET ERROR ±2%. HOMOGENEITY ±1.5%. RESOLUTION 1°C. FIXED TEMPERATURE OF 37ºC WITH CHECK THERMOMETER

SAFETY

CONFORMS TO EN 61010 DIRECTIVE, OVER TEMPERATURE CUT OUT FITTED.

APPLICATIONS

Clinical, biochemical and chemical laboratories.
Incubation of DNA, enzyme assays, residual testing in dairy, incubation and fusion of AGAR, cell culture.
Thermo control to dry, boiling, evaporation, concentration, hydrolysis, digestion etc.

COMMON FEATURES

Dry block systems have several advantages over wet contact methods such as: no risk of evaporation of heating liquid, higher working temperatures, better long term temperature stability and no sample cross contamination or germination of bacteria in the bath.

CONTROL PANEL

1. Digital display showing temperature and time in minutes.
2. Indicator show displayed parameter (Time or temperature.).
3. Push button selector to show time or temperature.
4. Push button increase displayed value.
5. Push button decrease displayed value.
6. Push button Start / Stop.
7. Over temperature alarm indicator.
