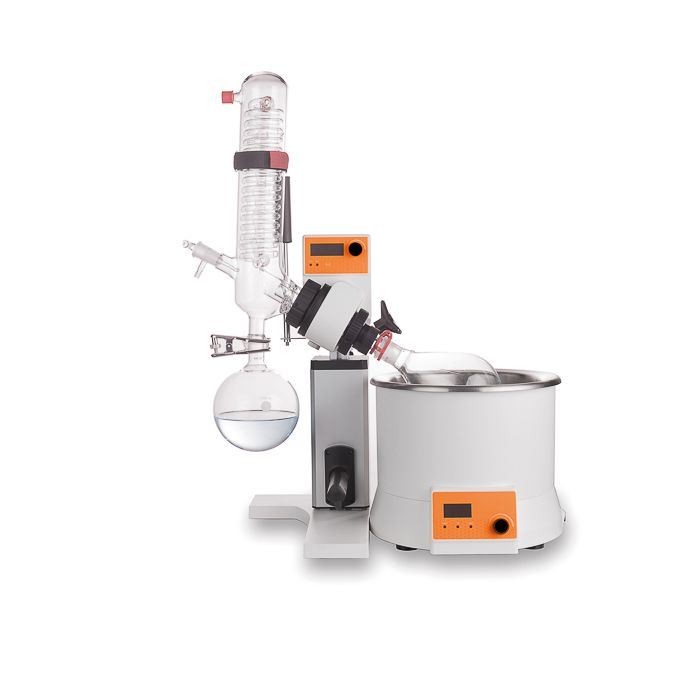

Rotary Evaporator LBX EVA 180-B series

Rotary Evaporator LBX EVA 180-B series

Characteristics of Rotary Evaporator LBX EVA 180-B series
Set of vertical glassware included (REVA-A01-001). Speed range from 20 to 200 rpm. 5 L water-oil heating universal bath with heating temperature range of RT to 180 ºC, with a precise temperature control (±1ºC in water) and that can be used independently.LED screen that displays heating temperature, rotation speed and timing. Patented condenser with excellent cooling effect (cooling surface 1700 cm2). Manual lift combined with auxiliary lift for precise positioning of the glassware. Evaporating flask with an ejector, easy to remove. Chemical-resistant double PTFE system and patented pressure spring provide excellent sealing. External dimensions (mm): 440 x 320 x 450 (main unit) and 300 x 300 x 240 (heating bath). Weight: 7 kg (main unit) and 3 kg (heating bath). 100-240 V / 50-60 Hz, insulation rating IP20 (DIN EN60529). Warranty 2 years.It is recommended to combine with the vacuum pump VACU-R20-001. The most suitable vacuum rubber tubing reference is RUTT-006-002
