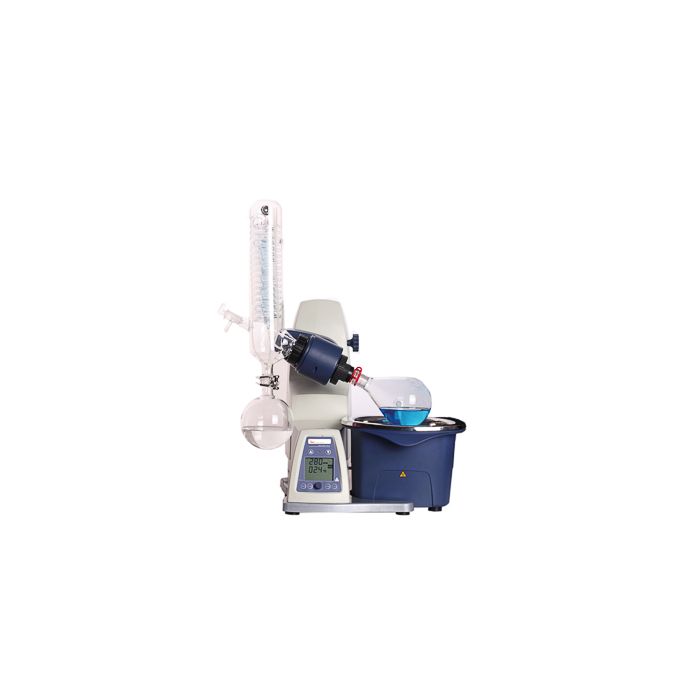

Rotary Evaporator LBX EVA180 series

Rotary Evaporator LBX EVA180 series

Characteristics of Rotary Evaporator LBX EVA180 series
Set of vertical glassware included (REVA-A01-001). Speed range from 20 to 280 rpm. Large 5 L water-oil heating bath with heating temperature range of RT to 180 ºC, with precise temperature control (±1ºC in water) and adjustable safety circuit. Large and easy to read digital LCD screen displays heating temperature, rotation speed and timing. Patented condenser with excellent cooling effect (cooling surface 1700 cm2). Motorized lift with quick-action, automatic release of evaporating flask to top position in case of power failure. Adjustable final position recognition to protect operator and sample against breakage. Evaporating flask with an ejector, easy to remove. Chemically resistant double PTFE system and patented pressure spring provide excellent sealing. External dimensions (mm): 583x465x457. Weight (Kg): 15. PC can control and document all parameters via RS232 interface (USB). 100-240 V / 50-60 Hz, insulation rating IP20 (DIN EN60529). Warranty 2 years. It is recommended to combine with the vacuum pump VACU-R20-001. The most suitable vacuum rubber tubing reference is RUTT-006-002
