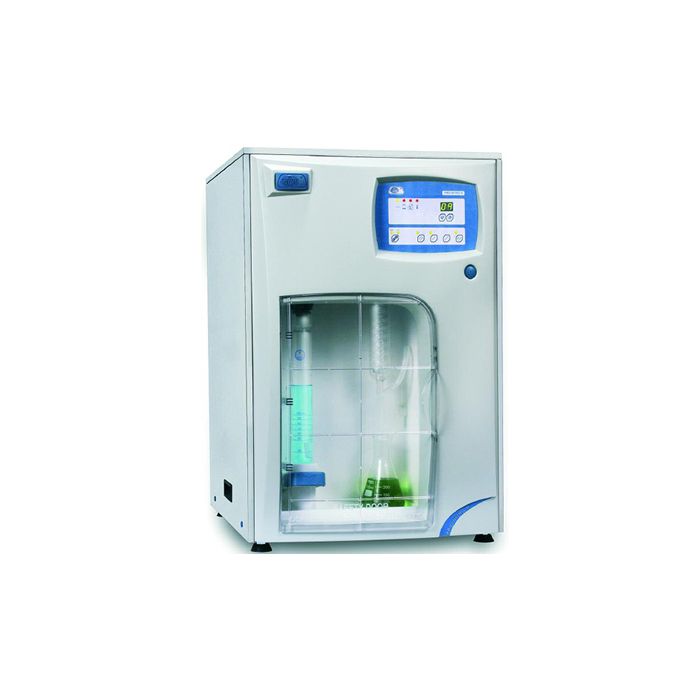

Steam distillation unit Kjeldahl Pro-Nitro S

STEAM DESTILLATION FOR DETERMINATION OF ORGANIC NITROGEN

Semi-automatic steam distillation Kjeldahl unit.
Simple secure systematic analysis suitable for medium to large throughput of samples.

Steam distillation system.
Compact steam generator with safety over temperature thermostat and over pressure device.
Safety door, the system will not operate if the door is open.
Tube in place sensor: if the tube is not located, the dosing process of NaOH will not take place.
Universal adapter for digestion/distillation tubes MACRO (Ø 42mm) and MICRO (Ø 26 mm).
Small footprint, saves bench top space: The H2O and NaOH reservoirs are placed within the unit.
Empty Digestion/Distillation tube system.
Stainless steel case with reinforced ABS plastic front.
Green LED 2 digit display.
Distillation program: (Add NaOH, Add Boric Acid, Distillation time, Empty tube.)
Automatic distillate titration kit.

SPECIFICATIONS

Measuring range: from 0.2 to 140 mg Nitrogen.
Programmable distillation time.
Nitrogen recovery >99.4%
Distillation speed : from 35-40mL/minute
Typical distillation time: from 7-10 minutes.
Water consumption rate: from 80-100 L/Hr.
Steam generator water consumption: 2 L/Hr.
Water reservoir for steam generator: 6 L
NaOH reservoir: 2 L
Boric Acid reservoir: 2 L

ALARMS

Low water level in the reservoir for the steam generator.
Safety door open or no distillation/digestion tube in place.
Steam generator over temperature.

AUTOMATIC

Single push button to start the distillation cycle:

• Boric acid dosing
• Start distillation.
• NaOH dosing
• Stop Distillation (Programmed time transpired.)
• Acoustic indicator at the end of the cycle.
• Empty the distillation/digestion tube.

ADDITIONAL REQUIREMENTS

To complete Kjeldahl Nitrogen analysis a digestion block is also required.
