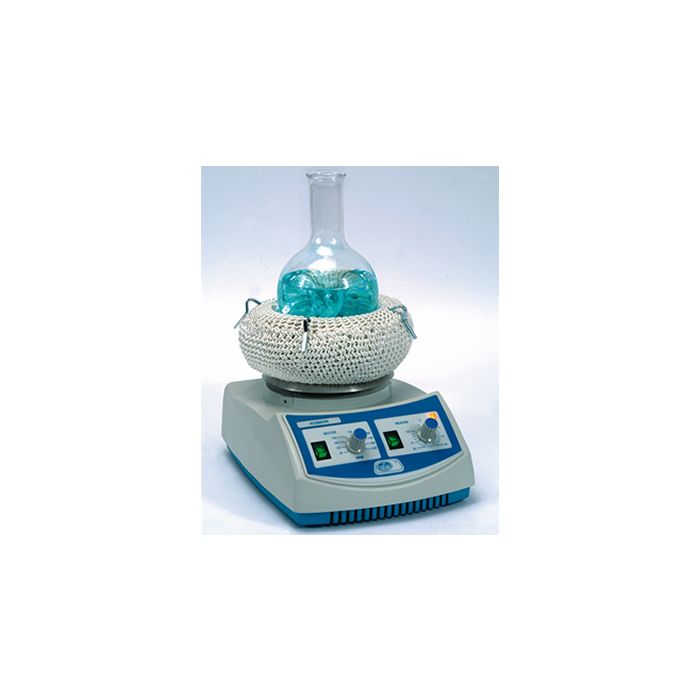

Stirrer Agiman

Unique functional design, with epoxy covered alloy case. Choice of stainless steel or ceramic top plate (model dependent). An internal case acts as a spill guard and insulator, made from AISI304 stainless steel. Tilted control panel for easy viewing with splash protection. Location hole at the back for a retort support rod, supplied as an accessory. Electronic speed control from 60 to 1600 r.p.m. and from 50 to 1500 r.p.m. for models “Agimatic Rev” with constant speed irrespective of liquid viscosity. Easy to service and replace modular electronics. All heated models have a connection at the back to connect an electronic contact thermometer “Sensoterm”, electronic controller “Electemp” or Pt100 temperature probe, model dependent. All hotplates have a safety over temperature cut out, controlled to the maximum working temperature.

CONTROL PANEL

Mains switch with heating and stir speed illuminated indicators.
Electronic stir speed control.
Electronic heater energy control from 0-100%,synchronised with an indicator lamp that functions when the mantle is hot.
Illuminated heater indicator when the mantle is “on”.
