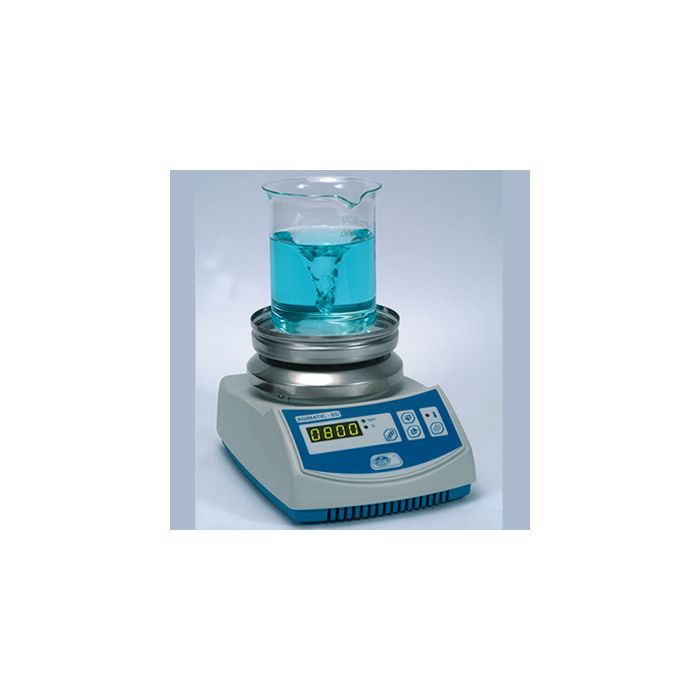

Stirrer Agimatic-ED

MAGNETIC STIRRER PLATE MADE FROM AISI 304 STAINLESS STEEL WITH REMOVABLE SAFETY RING. PLATE Ø 14.5 cm. ELECTRONIC DIGITAL CONTROL OF STIR SPEED AND HEATER TEMPERATURE.

Unique functional design, with epoxy covered alloy case. Choice of stainless steel or ceramic top plate (model dependent). An internal case acts as a spill guard and insulator, made from AISI304 stainless steel. Tilted control panel for easy viewing with splash protection. Location hole at the back for a retort support rod, supplied as an accessory. Electronic speed control from 60 to 1600 r.p.m. and from 50 to 1500 r.p.m. for models “Agimatic Rev” with constant speed irrespective of liquid viscosity. Easy to service and replace modular electronics. All heated models have a connection at the back to connect an electronic contact thermometer “Sensoterm”, electronic controller “Electemp” or Pt100 temperature probe, model dependent. All hotplates have a safety over temperature cut out, controlled to the maximum working temperature.

CONTROL PANEL

1. Digital display indicating stir speed or temperature.
2. Push button, parameter selector, Stir speed or Temperature.
3. Push button, increase parameter value.
4. Push button, decrease parameter value.
5. Indicator lamp, safety thermostat “on”.
6. Push button Stop-Start.
Precision ±2 °C.
