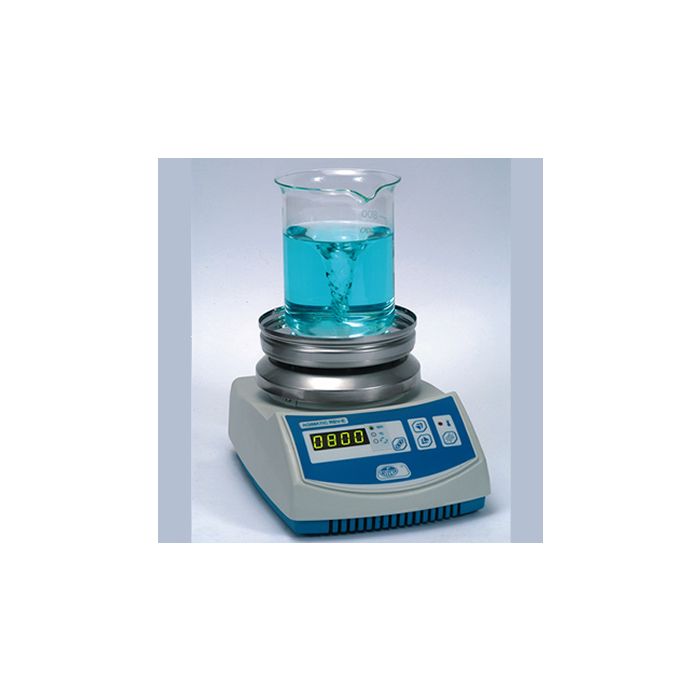

Stirrer Agimatic-REV-E

MAGNETIC STIRRER  WITH PLATE MADE FROM AISI 304 STAINLESS STEEL WITH REMOVABLE SAFETY RING. PLATE Ø 14.5 cm. SPEED VARIABLE FROM 60-1600 r.p.m ELECTRONIC DIGITAL CONTROL OF SPEED AND POWER TO THE HEATER.
FOR CONTROLLABLE TEMPERATURES FROM 50 °C UP TO 350 °C. PRECISION ±2 °C.

COMMON FEATURES

MAGNETIC REVERSIBLE ACTION STIRRERS, WITH ADJUSTABLE TIME STIRRING PERIODS AND
PRECISE SPEED CONTROL, PROVIDES THE FOLLOWING ADVANTAGES FOR REPEAT PROCESSES:

A.- FASTER MIXING, REDUCED STIRRING TIME.
B.- CONTROLLABLE VORTEX EFFECT.
C.- QUICKLY ELIMINATES AIR FROM WITHIN THE SAMPLE MIXTURE, DEGASSING.
D.- MINIMUM SPLASHING, NO LOSS OF SAMPLE.

SELECT MOVEMENT FOR ONE DIRECTION OR REVERSE.
ELECTRONIC CONTROL OF THE FREQUENCY OF THE REVERSE PERIOD, FROM 10-30 SECONDS.

CONTROL PANEL

1. Digital display indicating stir speed or temperature.
2. Push button, parameter selector, Stir speed or
Temperature.
3. Push button, increase parameter value.
4. Push button, decrease parameter value.
5. Indictor lamp, safety thermostat activated.
6. Push button Start-Stop.
