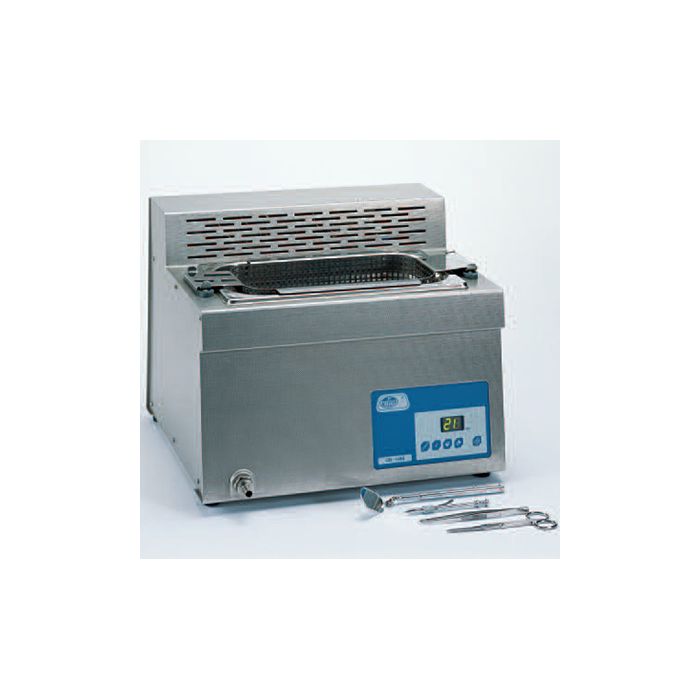

Ultrasons Bath UB-1488

ULTRASONIC CLEANING BATH WITH AUTOMATIC LIFT AND DRY

CONTROL PANEL

Timer switch for 0 -15 minutes or continuous operation.
Indicator lamp when the unit is in operation.

FUNDAMENTAL THEORY

The principal of ultrasonic cleaning consists of the use of high frequency sound waves (40 kHz), produced by a generator through a transducer, which propagates them mechanically inside the tank, this produces a cavitation effect which leads to the formation of millions of low pressure microscopical bubbles which carry out molecular cleaning, eliminating impurities, polluting agents and dirt from the parts or material which must be cleaned. Complex parts can be cleaned without disassembly since the cavitation penetrates wherever the cleaning solution is in contact with the surface. The generator of these baths is completely transistorised and incorporated, working through the “Sweeping frequency” system, which ensures uniform cavitation at all points of the resonance tank.

COMMON FEATURES

Double bodied tank, made entirely of stainlesssteel.
Emptying drain, anti-parasite filter, adjustable timer and heating, model dependent.

APPLICATIONS

Laboratories in general: acceleration of chemical reactions, degassing of liquids, cell disruption, cleaning of sieves, pipettes, micro-pipettes, cuvettes, trays, viscometers, decomposition of radioactive substances, etc.
Dentistry: Cleaning of prosthesis, instruments, etc.
Optics: Cleaning of frames, lenses, and contact lenses, etc.
Medicine: Cleaning of instruments in general, forceps, probes, scalpels etc.
Jewellery and Watch making: Cleaning of all kinds of watches and jewels.
Industry: Cleaning of all electronic components, printed circuit boards, semiconductors, petrol injector sieves and filters, etc.

FEATURES

Bath with automatic basket elevator that operates at the end of the timed cleaning cycle.
Hot air drying by two-turbine air fans that switch on at the start of the elevation and finalise the complete operation.
Waste drain at the front of the instrument.
Removable support basket.
