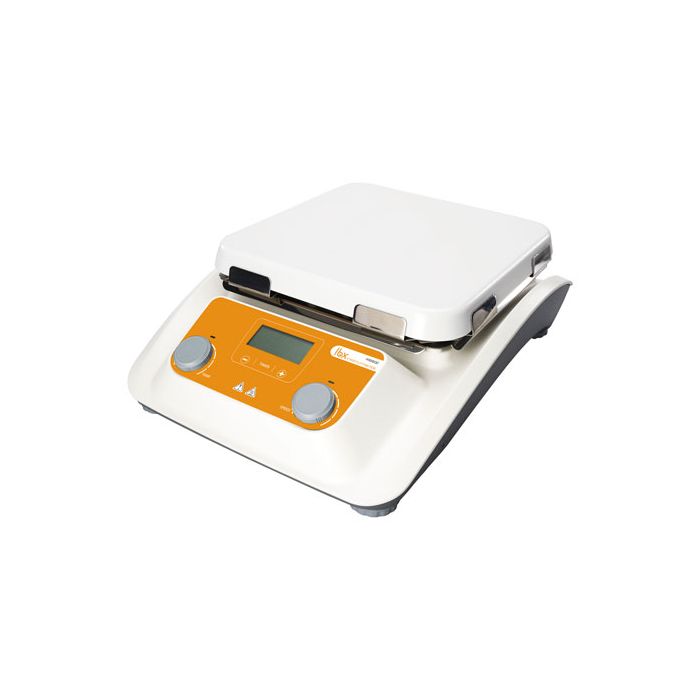

Digital Magnetic Stirrer with Heating H30SQC 30 L Ceramic-Glass Plate 254x254 mm

Square 254x254 mm ceramic-glass hot plate with digital magnetic stirring. Suited for synthesis and digestion procedures requiring precise temperature and speed control. Capacity up to 30 L.

Key Features

• Plate: Square ceramic-glass, 254x254 mm
• Temperature: Up to 500 °C at plate surface, readout ±0.1 °C
• Thermal power: 1350 W
• Stirring speed: 100–1500 rpm, resolution ±1 rpm
• Display: LCD — shows temperature and speed simultaneously
• Motor: Brushless, maintenance-free
• Stir bars: Compatible range 30 mm to 80 mm. 1 stir bar included
• Capacity: 30 L

Safety

Integrated safety circuit cuts heating if plate temperature exceeds 540 °C. HOT warning remains on screen to indicate residual heat at the plate surface.

External Temperature Control

Compatible with external Pt1000 sensor for real-time liquid temperature control — accuracy ±0.2 °C. Probe STIH-A04-001 not included; available as an accessory.

Technical Specifications

• External dimensions (L x W x H): 328 x 424 x 138 mm
• Power supply: 200–240 V / 50–60 Hz
• Protection rating: IP21 (DIN EN60529)
• Warranty: 2 years
