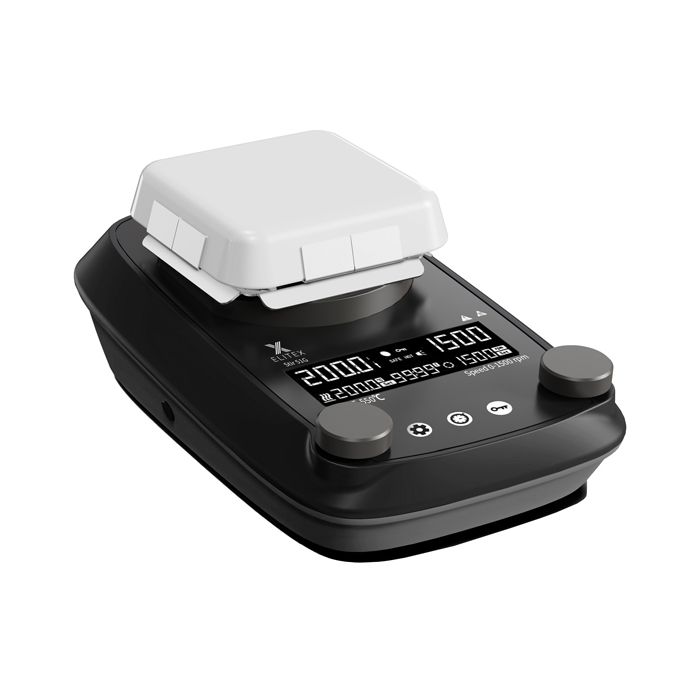

Digital Magnetic Hotplate Stirrer 550 °C 10 L Ceramic-Glass Plate STIR 51G

Magnetic hotplate stirrer built for demanding applications. Square ceramic-glass plate, 100 x 100 mm, reaching 550 °C. Suited to synthesis, acid digestions and any process requiring sustained high temperature. Brushless motor — maintenance-free.

Technical specifications

• Maximum temperature (plate):550 °C
• Heating modes:Fast, standard and stable
• Stirring speed:50 – 1500 rpm
• Maximum capacity:10 L
• Heating power:380 W
• Plate:Square ceramic-glass, 100 x 100 mm
• Compatible stir bars:Up to 40 mm (1 magnetic stir bar included)
• Timer:1 min – 99 h 59 min
• Display:LCD shows actual and set speed, temperature and time simultaneously
• Motor:Brushless, maintenance-free
• Dimensions (L x W x H):270 x 175 x 108 mm
• Power supply:200-240 V / 50-60 Hz
• Protection rating:IP21
• Warranty:2 years

Safety

Two independent safety circuits: the unit shuts down automatically on overheating (> 580 °C), sensor failure or short circuit. The HOT indicator stays active while the plate retains residual heat — relevant when working with solvents or thermally sensitive samples.

Control and programming

The LCD displays actual and set values side by side. Timer range covers one minute to just under 100 hours. External temperature sensor and sensor stand included.

Typical applications

High-temperature organic and inorganic synthesis, acid digestions, dissolution of refractory salts, timed processes in chemistry, pharmacy, quality control and research laboratories.
