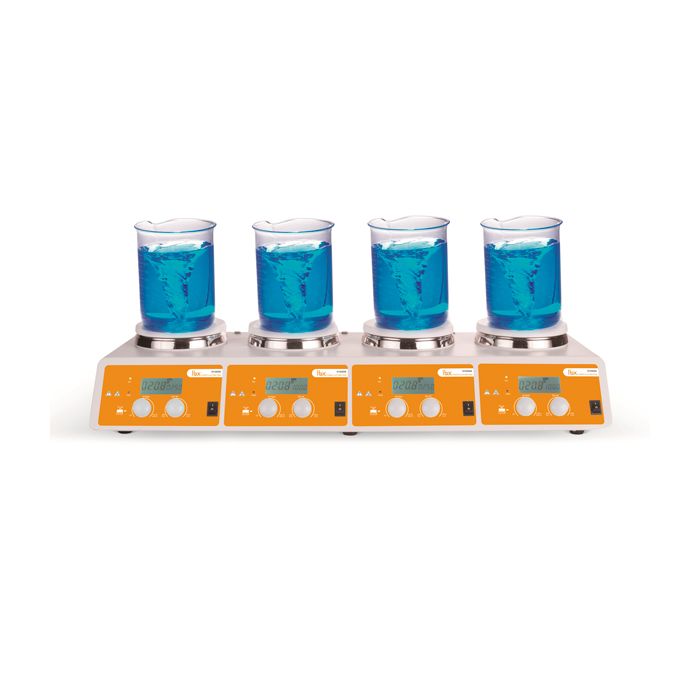

Multiple Magnetic Stirrer with Heating 4-Position H10X04

Four heated stirring positions in a compact benchtop unit. Each position operates independently — temperature and speed are controlled without affecting the others. Suited for running multiple samples under different conditions simultaneously.

Why this stirrer

The brushless motor reduces maintenance requirements and extends service life. Ceramic plates resist reagent spills. At 698 mm long, the footprint is considerably smaller than four individual stirrers.

Technical specifications

• Number of positions: 4
• Maximum plate temperature: 340 °C
• Stirring speed: 200 - 1500 rpm
• Capacity per position: 10 L
• Plate diameter: 4 x 135 mm
• Maximum stir bar length: 40 mm
• Heating surface: Ceramic
• Motor: Brushless, maintenance-free
• Control: Independent speed and temperature per position
• Dimensions (L x W x H): 698 x 270 x 128 mm
• Power supply: 200-240 V / 50-60 Hz
• Protection rating: IP20
• Warranty: 2 years

Typical applications

Parallel synthesis, buffer preparation, dissolution testing, and protocols requiring multiple samples under controlled temperature and agitation. Commonly used in chemistry, pharmaceutical, quality control and research laboratories.

Installation and use

Direct mains connection at 200-240 V. No special installation required. IP20 rated — suitable for general laboratory use with standard precautions against liquid splashes.
