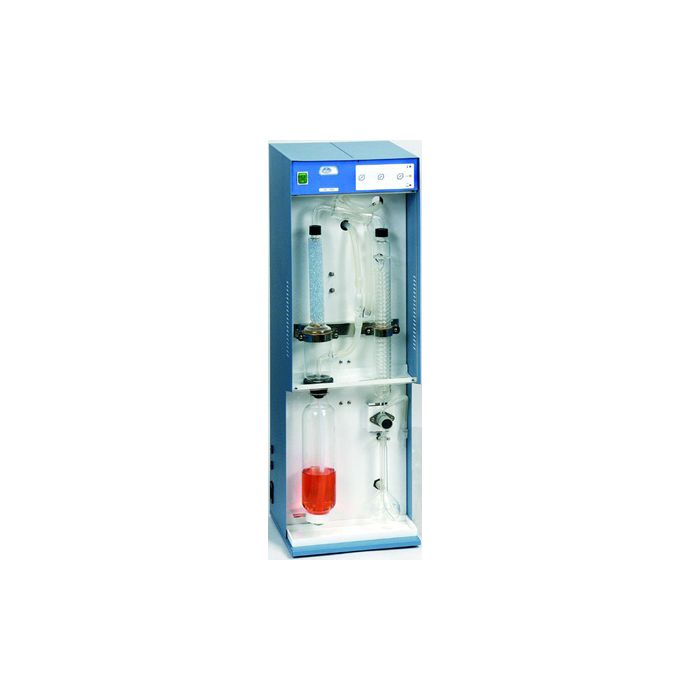

Alcohol distillation unit DE-162

APPARATUS TO OBTAIN THE DISTILLATION OF ALCOHOL FROM ALCOHOLIC BEVERAGES IN ACCORDANCE WITH CEE NO. 2676/90  AND CEE NO. 2870/2000

APPLICATIONS

Degree of alcohol in wines, Degree of alcohol in spirits, Volatile acids and Sorbic acid.

FEATURES

Vapour distillation.
Designed especially to obtain the distillation of wines and spirits to
determine the alcohol grade by volume, volatile acid, ascorbic acid
and other components.
Distillation volume up to 400 mL.
Auto stop at the end of the distillation.
Simple operation with minimum service.
Vapour generator protection system.

• Tube Ø 42 mm for volatile acid samples.
• Tube Ø 52 mm for volatile acid samples and 100 mL proof alcohol.
• Tube Ø 80 mm for samples of 200 mL for proof alcohol.
• 200 mL Matrix flask to collect distillate.

TECHNICAL SPECIFICATIONS

Validated to the criteria of CEE No. 2676/90 and CEE No. 2870/2000
Distillation speed: 30-40 mL/min (Recover of 200 mL of distillate in 5/6 minutes).
Condenser coolant water rate: 80-100 L/hr.
Generator water consumption: 1 and 1.25 mL for each mL of distillate.
Vapour generator power: 2400 W.

CONTROL PANEL

Control Panel.
Electronic controller.
Mains switch.
Push button START.
Push button STOP.
Push button ADD.
By the use of the ADD button allows the distillate to set burette level, there is no need then to top up with water to a level of 200 mL.

VALIDATION

The oenological DE-1626 has been validated by the oenological laboratory INCAVI in Vilafranca del Penedés.
This laboratory has completed analysis from the distillation unit DE-1626 for the determination of alcohol proof by volumetric analysis, following the criteria of CEE No 2676/90 and CEE 2870/2000.
They have analysed samples of hydrated alcohol, different wines and spirits with a high alcohol content.
The unit was successfully appraised by the laboratory.
