H150 Sample Concentrator PID Temperature Control up to 150 °C Interchangeable Blocks
In stock
+150€ Península y Baleares
pago
escuelas y universidades
oficiales
| SKU | Product Name | Price | Qty | |
|---|---|---|---|---|
| SMPC-001-001 | Sample concentrator H150 1-block capacity |
€1,063.75
|
|
|
| SMPC-002-001 | Sample concentrator H150 2-block capacity |
€1,150.00
|
|
|
| SMPC-A01-001 | Block for 12 tubes of Ø6 mm |
€138.00
|
|
|
| SMPC-A02-001 | Block for 12 tubes of Ø10 mm |
€138.00
|
|
|
| SMPC-A03-001 | Block for 12 tubes of Ø13 mm |
€138.00
|
|
|
| SMPC-A04-001 | Block for 12 tubes of Ø16 mm |
€138.00
|
|
|
| SMPC-A05-001 | Block for 12 tubes of 02 ml |
€138.00
|
|
|
| SMPC-A06-001 | Block for 12 tubes of 15 ml |
€138.00
|
|
|
| SMPC-A07-001 | Block for 12 tubes of 20 ml |
€138.00
|
|

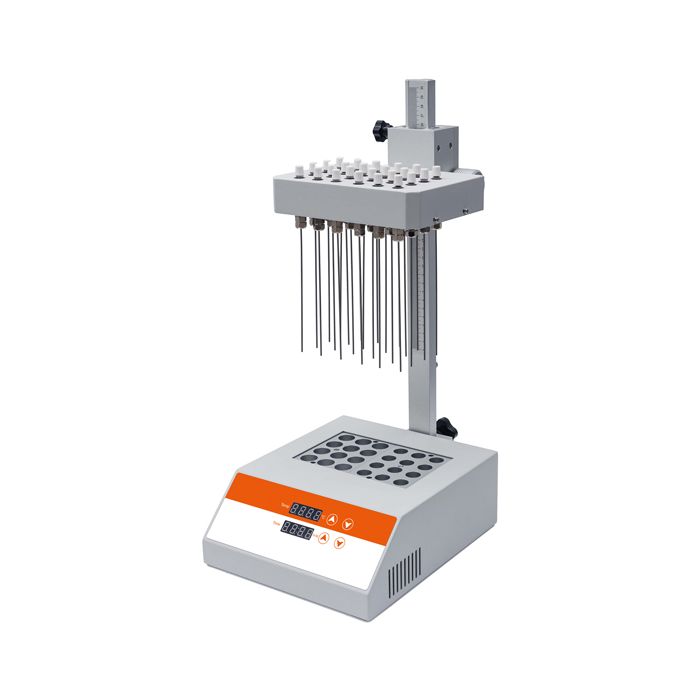

H150 Sample Concentrator PID Temperature Control up to 150 °C
Sample concentrator with PID control maintaining working temperature with tight stability up to 150 °C. Designed for use with a wide range of tube formats via interchangeable blocks — not included — mounted on the height-adjustable stand.
Key features
- Temperature control: PID, up to 150 °C with tight precision
- Gas needles: Independent per position, individually adjustable flow
- Cross-contamination: Eliminated by design — each needle operates in isolation
- Height adjustment: Graduated rod for precise gas head positioning
- Blocks: Compatible with interchangeable blocks (not included)
- Stand: Height-adjustable, included
- Power supply: 220-240 V, 50/60 Hz
- Warranty: 2 years
Applications
Evaporation and concentration of samples in analytical chemistry, quality control, toxicology and residue laboratories. Suited to parallel processing of multiple tubes where cross-contamination between positions must be avoided.
Independent needles allow combined or individual operation depending on the number of active samples — no changes to the setup required.
Technical specifications
- Model: H150
- Maximum temperature: 150 °C
- Control: PID
- Gas: Independent needles with individual flow adjustment
- Head adjustment: Graduated rod
- Voltage: 220-240 V
- Frequency: 50/60 Hz
- Sample block: Not included — compatible with interchangeable blocks
- Warranty: 2 years
Compatibility and accessories
The system accepts interchangeable blocks for different tube formats. The height-adjustable stand accommodates varying working configurations and improves bench ergonomics.
| Brand | LBX instruments |
|---|
