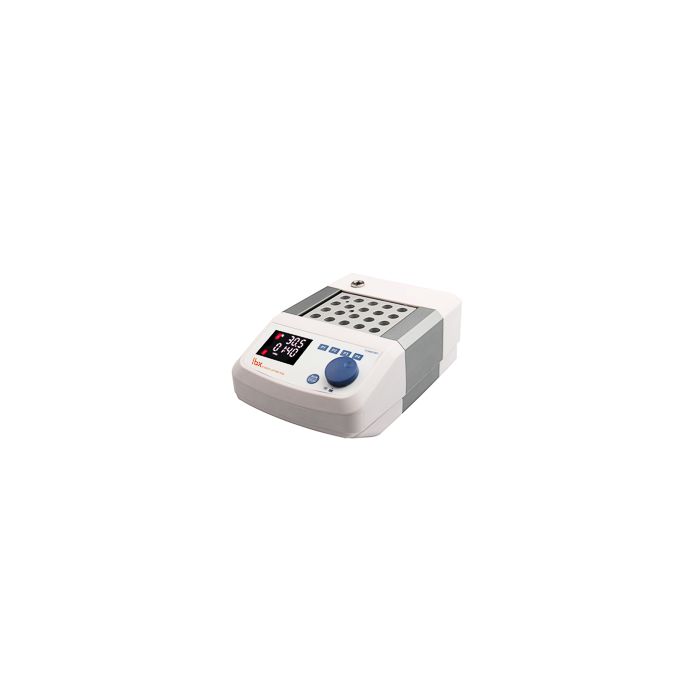

Digital Metal Block Thermostat 5 to 150 °C with Timer and PT1000 Sensor
Digital thermostat for metal blocks 7.6 x 9.6 cm. Temperature range 5 to 150 °C with ±0.2 °C accuracy in one position and ±0.5 °C in two. Timer with alarm, 1 minute to 99h59'. Dual LED display showing temperature and time. External PT1000 sensor. IP21 protection per DIN EN60529. Suitable for COD (148–150 °C), TOC, total chromium, total phosphate and total nitrogen (100–120 °C). Block not included. 2-year warranty.
In stock
SKU:
25097
As low as:
€50.92
As low as:
Digital Metal Block Thermostat 5 to 150 °C with Timer and PT1000 Sensor
Dry heating unit for metal blocks 7.6 x 9.6 cm. Digital control with LED display showing temperature and elapsed time. Two operating modes: continuous or timer with end-of-run alarm. Block not included — select separately based on application and vial or tube format.
Technical Specifications
- Temperature range: 5 to 150 °C
- Accuracy: ±0.2 °C (one position) / ±0.5 °C (two positions)
- Timer: 1 minute to 99h59', with alarm
- Display: LED, temperature and time
- Sensor: External PT1000
- Power supply: 230 V / 50 Hz
- Protection rating: IP21 (DIN EN60529)
- Warranty: 2 years
- Block: Not included
Typical Applications
Designed for water analysis and environmental laboratories. Covers standard digestion methods:
- COD: 148 °C or 150 °C
- TOC: 120 °C
- Total chromium: 100 °C
- Total phosphate: 100 °C
- Total nitrogen: 100 °C
The timer with alarm supports unattended digestions. The unit signals when the set time has elapsed.
Installation and Use
Compact footprint. Connects directly to 230 V / 50 Hz — no special installation required. IP21 rating provides protection against liquid splashes. The external PT1000 sensor monitors actual block temperature independently of the set point.
| Brand | LBX instruments |
|---|
