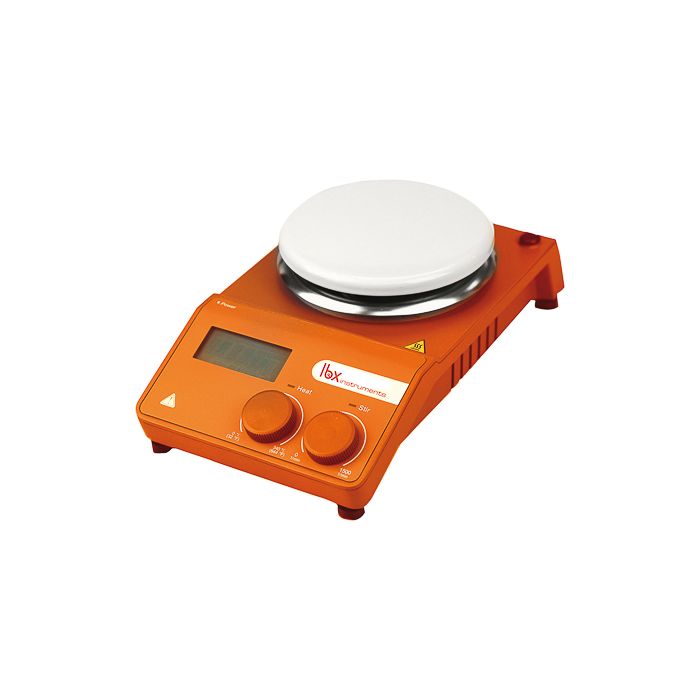

H20D+ Digital Magnetic Stirrer with Heating, 20 L, up to 340 °C, Ceramic Plate, PID Control

Magnetic stirrer for medium-to-large volumes, up to 20 L. Ceramic plate with PID regulation for steady temperature throughout the run. Three heating modes—rapid, standard, stable—selectable to match process requirements.

Technical Specifications

• Maximum plate temperature:340 °C
• Heating modes:Rapid, standard, stable
• Thermal output:600 W
• Plate material:Ceramic
• Stirring speed:100 – 1500 rpm
• Capacity:20 L
• Compatible vessels: Ø < 135 mm
• Magnetic stirring bars:30 – 80 mm
• Motor:Brushless, maintenance-free
• External sensor included:Pt1000, accuracy ±0.2 °C
• Display:LCD showing temperature and speed
• Dimensions (L x W x H):280 x 160 x 85 mm
• Power supply:200-240 V / 50-60 Hz
• Protection rating:IP21 (DIN EN60529)
• Warranty:2 years

Control and Safety

PID temperature control eliminates overshoot and oscillation. An independent safety circuit cuts heating if the plate exceeds 420 °C. HOT warning remains displayed after power-off—preventing accidental contact.

The Pt1000 sensor measures temperature directly in the liquid. Particularly useful for viscous samples where surface-only readings are unreliable.

Installation and Accessories

Direct mains connection: 200-240 V / 50-60 Hz. Probe support STIH-A04-001 sold separately. Brushless motor design removes the need for scheduled servicing.

Typical Applications

Thermally controlled chemical synthesis, large-volume solution preparation, isothermal processes. Routinely used in chemistry, pharmaceutical and quality-control laboratories.
