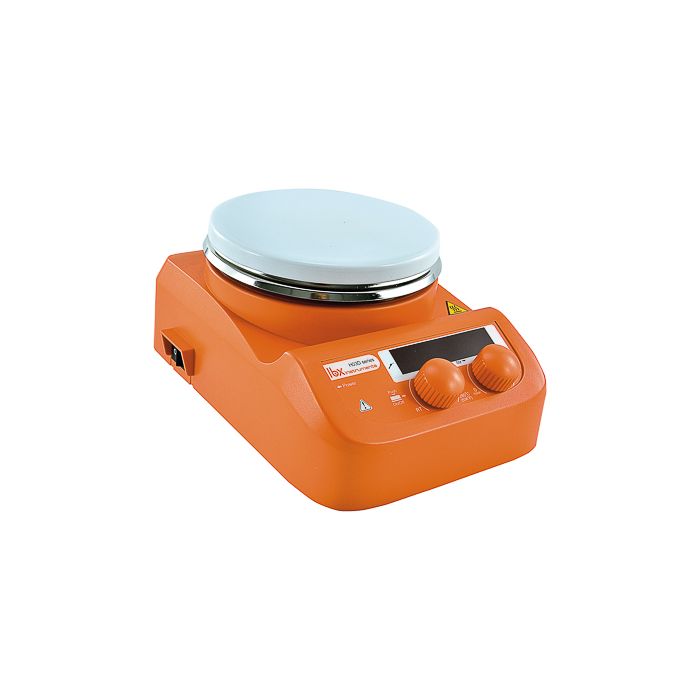

H03D Digital Magnetic Stirrer with Heating 3 L up to 280 °C Ceramic Plate

Magnetic hotplate stirrer designed for continuous laboratory use. Flame-retardant ABS housing, resistant to weak acids and bases. Ceramic heating plate and brushless motor — no maintenance required.

Key Features

• Maximum temperature: 280 °C at plate surface
• Heating output: 515 W
• Speed: 200–1500 rpm, adjustable
• Capacity: 3 L
• Display: LED — shows temperature and speed simultaneously
• Safety indicator: HOT warning for residual plate temperature
• Motor: Brushless, maintenance-free
• External sensor (optional): Pt1000 for in-medium temperature control, accuracy ±0.5 °C

Compatibility and Setup

Suitable for beakers under Ø135 mm and stir bars up to 50 mm. Stir bar included. External dimensions: 260 x 150 x 100 mm — compact bench footprint.

Technical Specifications

• Housing: Flame-retardant ABS, resistant to weak acids and bases
• Plate: Ceramic
• Max. plate temperature: 280 °C
• Heating output: 515 W
• Speed range: 200–1500 rpm
• Stirring capacity: 3 L
• Power supply: 200-240 V / 50-60 Hz
• Protection rating: IP21 (DIN EN60529)
• Dimensions (L x W x H): 260 x 150 x 100 mm
• Warranty: 2 years

Typical Applications

Chemical synthesis, heated solution preparation, dissolution of solids, and any process requiring controlled stirring. The optional Pt1000 sensor provides direct in-medium temperature monitoring — a reliable option where surface temperature readings are insufficient.
