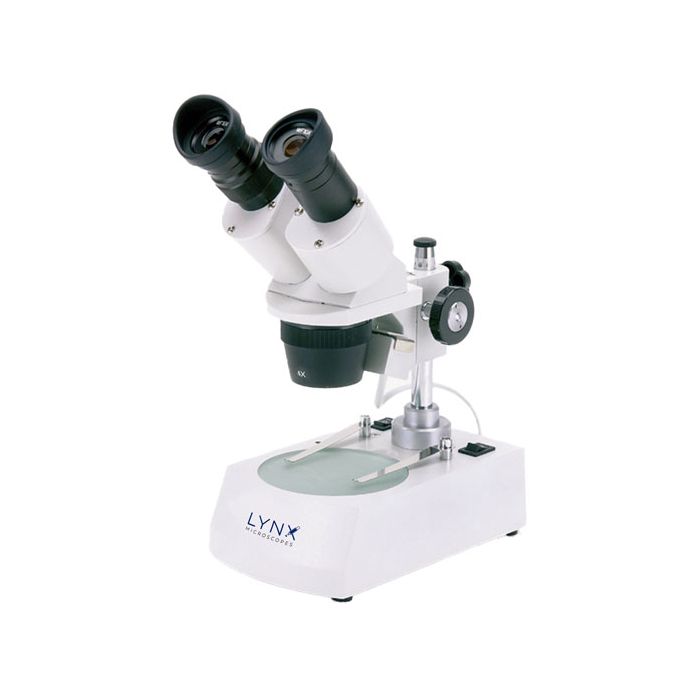

Binocular Stereo Microscope 20X-40X Incident and Transmitted LED WF10X Achromatic 2X and 4X Objectives
Binocular stereo microscope with 45° inclined head, interpupillary distance 55-75 mm and dioptre adjustment. WF10X/20 mm eyepieces with 2X and 4X achromatic objectives for 20X and 40X magnification. Rack-and-pinion focusing. Stage with interchangeable frosted glass and black/white plates. Rechargeable incident and transmitted LED illumination, 12V 10W. Automatic dual voltage 100-240 V, 50/60 Hz. Warranty: 2 years.
In stock
SKU:
118653
Portes gratis
+150€ Península y Baleares
+150€ Península y Baleares
Múltiples formas de
pago
pago
Condiciones especiales
escuelas y universidades
escuelas y universidades
Distribuidores
oficiales
oficiales
| SKU | Product Name | Price | Qty | |
|---|---|---|---|---|
| SM01-001-001 | L45 Stereomicroscope binocular head |
€176.11
|
|
Binocular Stereo Microscope 20X-40X Incident and Transmitted LED
Stereo microscope with 45° inclined binocular head, WF10X/20 mm eyepieces and 2X and 4X achromatic objectives. Working magnifications of 20X and 40X. Dual LED illumination—incident and transmitted—compatible with any mains supply.
Optical Specifications
- Head: Binocular, 45° inclination
- Eyepieces: WF10X/20 mm with dioptre adjustment
- Interpupillary distance: 55-75 mm, adjustable
- Objectives: 2X and 4X achromatic
- Magnification: 20X and 40X
- Focusing: Rack and pinion
Illumination and Stage
Rechargeable incident and transmitted LED illumination, 12V 10W. Handles opaque specimens or transparent preparations without changing equipment.
The stage includes interchangeable plates: frosted glass for transmitted illumination and a black/white plate for contrast under incident illumination.
Technical Data
- Power supply: 100-240 V, 50/60 Hz, automatic dual voltage
- Illumination: Incident and transmitted LED, 12V 10W
- Stage: With frosted glass and black/white plates
- Warranty: 2 years
Applications
Dissection, small parts inspection, electronics, gemology, visual quality control and teaching. 20X-40X range. Dual illumination for dry specimens or slide preparations.
| Brand | LYNX Microscopes |
|---|
