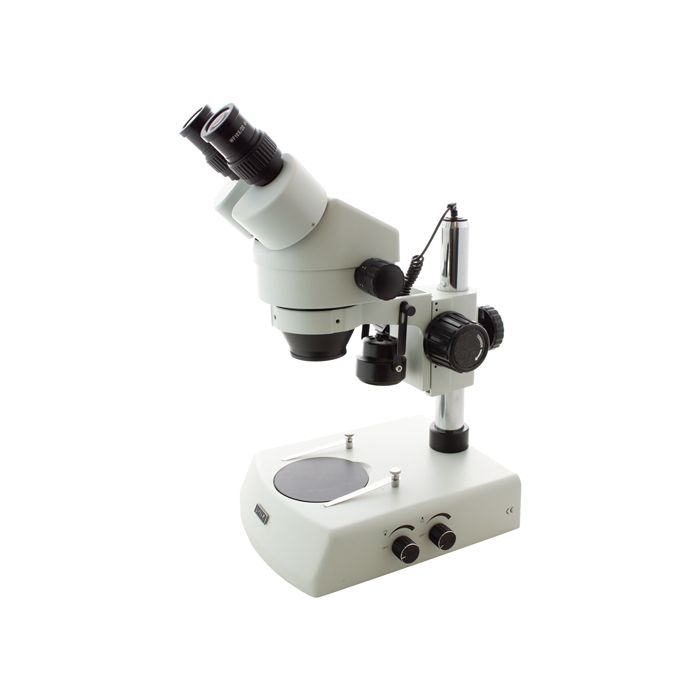

L90 Binocular/Trinocular Stereo Microscope Zoom 0.7X–4.5X Incident and Transmitted LED Illumination
Binocular/trinocular stereo microscope with Greenough optics and 0.7X–4.5X zoom, delivering 7X–45X standard magnification, expandable to 2.1X–270X with accessories. 360° rotating head, inclined 45°. Adjustable diopters ±5, interpupillary distance 54–76 mm. WF10X/20 mm eyepieces. Adjustable LED illumination for both incident and transmitted light. Base with transparent disc and specimen clips. Power supply 110–240 V, 50/60 Hz. 2-year warranty.
In stock
SKU:
118657
Portes gratis
+150€ Península y Baleares
+150€ Península y Baleares
Múltiples formas de
pago
pago
Condiciones especiales
escuelas y universidades
escuelas y universidades
Distribuidores
oficiales
oficiales
| SKU | Product Name | Price | Qty | |
|---|---|---|---|---|
| SM02-002-001 | L90 Stereomicroscope binocular head |
€522.24
|
|
|
| SM02-003-001 | L90 Stereomicroscope trinocular head |
€585.60
|
|
|
| MPAC-031-001 | Ocular WF10x/20 mm L90 |
€31.80
|
|
|
| MPAC-032-001 | Ocular WF15x/15 mm L90 |
€37.10
|
|
|
| MPAC-033-001 | Ocular WF20x/10 mm L90 |
€42.40
|
|
|
| MPAC-034-001 | Ocular WF25x/9 mm L90 |
€47.70
|
|
|
| MPAC-035-001 | Ocular WF30x/8 mm L90 |
€53.00
|
|
|
| MPAC-036-001 | Lente auxiliar 0.3x L90 |
€63.60
|
|
|
| MPAC-037-001 | Lente auxiliar 0.5x L90 |
€63.60
|
|
|
| MPAC-038-001 | Lente auxiliar 0.7x L90 |
€65.02
|
|
|
| MPAC-039-001 | Lente auxiliar 0.75x L90 |
€65.02
|
|
|
| MPAC-040-001 | Lente auxiliar 1.5x L90 |
€63.60
|
|
|
| MPAC-041-001 | Lente auxiliar 2x L90 |
€63.60
|
|
|
| MPAC-044-001 | Adaptador C mount 0.5x p. trinoc. L90 |
€74.20
|
|
L90 Binocular/Trinocular Stereo Microscope Zoom 0.7X–4.5X LED Illumination
Stereo microscope with Greenough optical system and continuous zoom. Configurable as binocular or trinocular. The 360° rotating head—inclined at 45°—reduces operator fatigue during extended sessions.
Optics and Magnification
- Optical system: Greenough
- Eyepieces: WF10X/20 mm
- Objective: Continuous zoom 0.7X–4.5X
- Standard magnification: 7X–45X
- Magnification with accessories: Expandable to 2.1X–270X
- Focus mechanism: Rack and pinion
Head and Ergonomics
- Rotation: 360°
- Inclination: 45°
- Diopter adjustment: ±5
- Interpupillary distance: 54–76 mm
- Beam splitting ratio: 50/50, 20/80, 0/100
Illumination and Base
Adjustable LED for incident and transmitted light. Suitable for opaque surfaces and transparent specimens alike—the base disc enables transmitted illumination without additional hardware.
- Illumination: Adjustable LED, incident and transmitted
- Base: Transparent disc with specimen clips
- Power supply: 110–240 V, 50/60 Hz
Typical Applications
PCB and electronic component inspection, biological dissection, small-part quality control, gemology, restoration and jewellery work. Continuous zoom allows magnification adjustment without objective changes.
Warranty
2 years.
| Brand | LYNX Microscopes |
|---|
