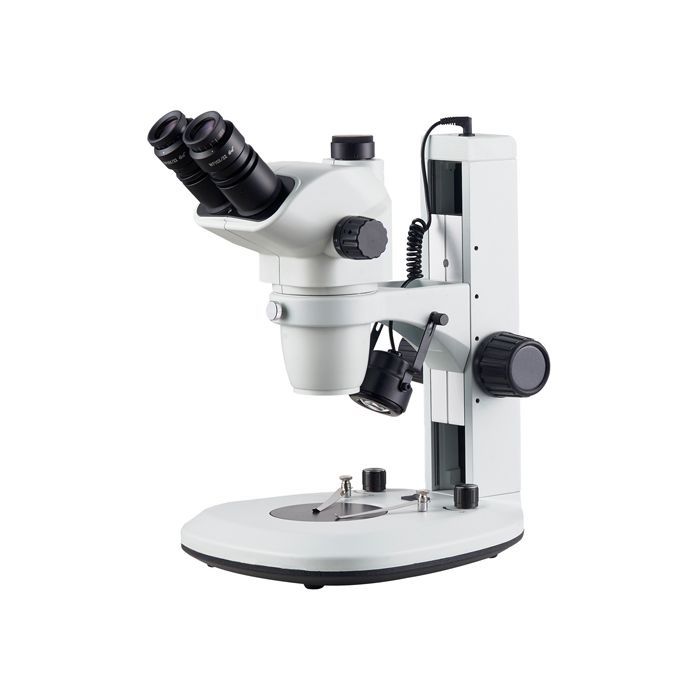

Superior L100 Stereo Microscope zoom 0.67X–4.5X binocular/trinocular LED incident and transmitted
Stereo microscope with Greenough optics, continuous zoom 0.67X to 4.5X (6.7:1 ratio). Standard magnification 6.7X to 45X, expandable to 270X with accessories. Binocular or trinocular. 45° inclined head, 360° rotating, interpupillary adjustment 54–75 mm, bilateral dioptre correction ±5. WF10X/22 mm eyepieces. Working distance 105 mm — suited for bulky specimens. Base with dual LED illumination, incident and transmitted. Power supply 110–240 V, 50/60 Hz. 2-year warranty.
In stock
SKU:
138103
Portes gratis
+150€ Península y Baleares
+150€ Península y Baleares
Múltiples formas de
pago
pago
Condiciones especiales
escuelas y universidades
escuelas y universidades
Distribuidores
oficiales
oficiales
| SKU | Product Name | Price | Qty | |
|---|---|---|---|---|
| MPAC-069-001 | WF 10x/22 eyepiece L100 |
€36.80
|
|
|
| MPAC-070-001 | WF 15x/16 eyepiece L100 |
€32.20
|
|
|
| MPAC-073-001 | WF 30x/8 eyepiece L100 |
€59.80
|
|
|
| MPAC-074-001 | Auxiliary lens 0.3x L100 |
€64.40
|
|
|
| MPAC-075-001 | Auxiliary lens 0.5x L100 |
€64.40
|
|
|
| MPAC-079-001 | Auxiliary lens 2x L100 |
€64.40
|
|
|
| MPAC-080-001 | Type C 05X adapter L100 |
€64.40
|
|
|
| MPAC-081-001 | CL4 stand |
€230.00
|
|
|
| SM03-002-001 | Stereomicroscope L100 binocular |
€729.30
|
|
|
| SM03-003-001 | Stereomicroscope L100 trinocular |
€785.40
|
|
Superior L100 Continuous Zoom Stereo Microscope 0.67X–4.5X binocular/trinocular
Continuous zoom stereo microscope for industrial inspection, electronics, gemology and quality control. Greenough optical system. Working distance of 105 mm accommodates bulky and irregularly shaped specimens.
Optical System
- Type: Greenough
- Eyepieces: WF10X/22 mm
- Zoom: Continuous 0.67X to 4.5X — 6.7:1 ratio
- Standard magnification: 6.7X to 45X
- Maximum magnification: Up to 270X with optional accessories
- Working distance: 105 mm
Head and Ergonomics
- Versions: Binocular or trinocular
- Inclination: 45°
- Rotation: 360°
- Interpupillary adjustment: 54–75 mm
- Dioptre correction: Bilateral ±5
- Focus: Rack-and-pinion with bilateral coaxial controls
Illumination and Base
Base fitted with dual LED illumination — incident and transmitted — with independent intensity control. Transparent disc with clips for specimen fixation. Universal power supply 110–240 V, 50/60 Hz.
Typical Applications
Electronic component inspection, gemology, quality control, biological dissection, microsolder work and surface examination. Trinocular version accepts camera attachment.
Technical Specifications
- Optical system: Greenough
- Zoom: 0.67X–4.5X (6.7:1)
- Magnification: 6.7X–45X (270X with accessories)
- Eyepieces: WF10X/22 mm
- Working distance: 105 mm
- Interpupillary: 54–75 mm
- Dioptre correction: ±5 bilateral
- Illumination: LED incident + transmitted, adjustable intensity
- Power supply: 110–240 V, 50/60 Hz
- Warranty: 2 years
| Brand | LYNX Microscopes |
|---|
