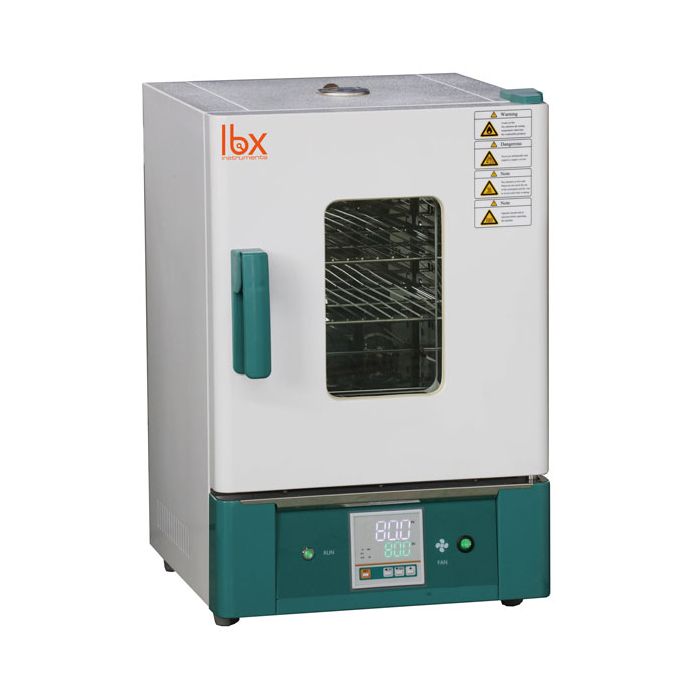

Forced Convection Oven OVF 40–300 °C Stainless Steel Chamber Microprocessor

Laboratory oven with fan-assisted airflow for drying, sterilisation and heat treatment applications between 40 °C and 300 °C. Stainless steel interior chamber — easy to clean and chemically resistant. Exterior steel casing finished with baked epoxy resin, suited to routine laboratory use.

Temperature Control

Microprocessor controller with the following specifications:

• Range: 40 °C – 300 °C
• Resolution: 0.1 °C
• Fluctuation: ±1 °C
• Uniformity and stability: ±2.5 %
• Timer: 0–9999 min
• Protections: Overtemperature, sensor alarm, safety lock, deviation correction

Construction and Design

• Interior chamber: Stainless steel
• Exterior: Baked epoxy-resin painted steel
• Door: 180° opening, double thermal glass — chamber observation without opening the door
• Feet: Adjustable
• Shelves: 2 height-adjustable wire shelves (additional shelves compatible)
• Power supply: 220 V / 50–60 Hz

Air Circulation

Forced convection fan ensures uniform heat distribution throughout the chamber. A switch allows selection of natural convection mode. Note: model DOVF-230-001 operates in forced convection only.

Typical Applications

Drying, heat sterilisation, accelerated ageing, stability testing and thermal treatment in chemistry, pharmaceutical, food science and quality control laboratories.

Warranty

2 years.
