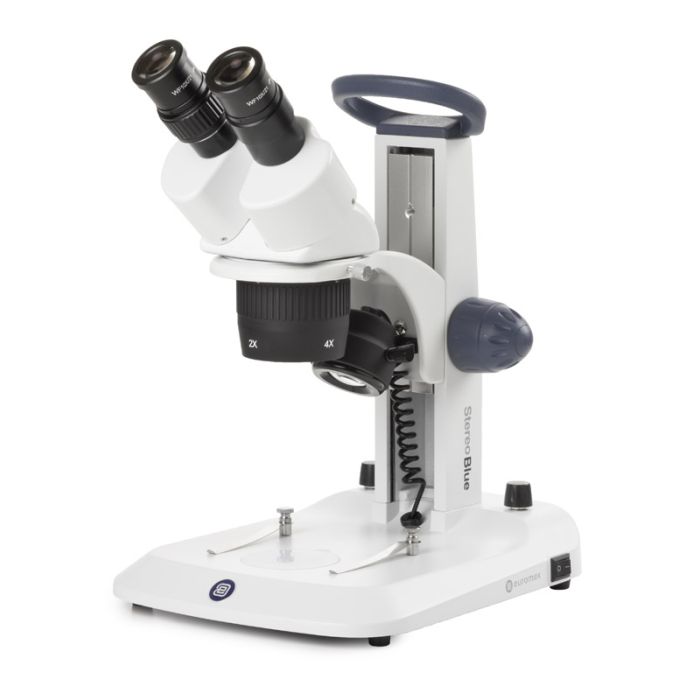

StereoBlue Binocular Stereo Microscope 20x/40x with LED Illumination

Euromex StereoBlue series binocular stereo microscope, suited for laboratory and higher education. Magnifications of 20x and 40x via WF10x eyepieces. Optics carry anti-fungal and anti-reflective treatment. Routinely used by biologists, entomologists, geologists, engineers, jewellers, and dental technicians.

Optical Specifications

• Eyepieces: WF10x / 21 mm with rubber eyecups
• Head: Binocular, 45° inclined
• Dioptre adjustment: On one eyepiece
• Interpupillary distance: Adjustable 55 mm to 75 mm
• Objectives: Dual revolving nosepiece 2x / 4x
• Magnification: 20x / 40x (expandable to 120x with optional accessories)
• Field of view: 10.5 mm at 20x / 5.2 mm at 40x
• Working distance: 100 mm

Illumination and Stand

3 W LED incident and transmitted illumination with variable intensity—operated independently or simultaneously. Rack-and-pinion stand with die-cast metal flat base, specimen clips, and Ø 60 mm transparent and black/white stage plates included. Macrometric focus with tension control.

Technical Specifications

• Type: Binocular stereo microscope
• Magnification: 20x / 40x
• Field of view: 10.5 mm / 5.2 mm
• Working distance: 100 mm
• Illumination: 3 W LED incident and transmitted, dimmable
• Interpupillary distance: 55 – 75 mm
• Stand: Die-cast metal with hardened coating
• Stage plates included: Transparent and black/white Ø 60 mm

Package Contents

Supplied with power cable, dust cover, rubber eyecups, spare fuse, Ø 60 mm stage plates (transparent and black/white), and user manual. Packed in polystyrene box.
