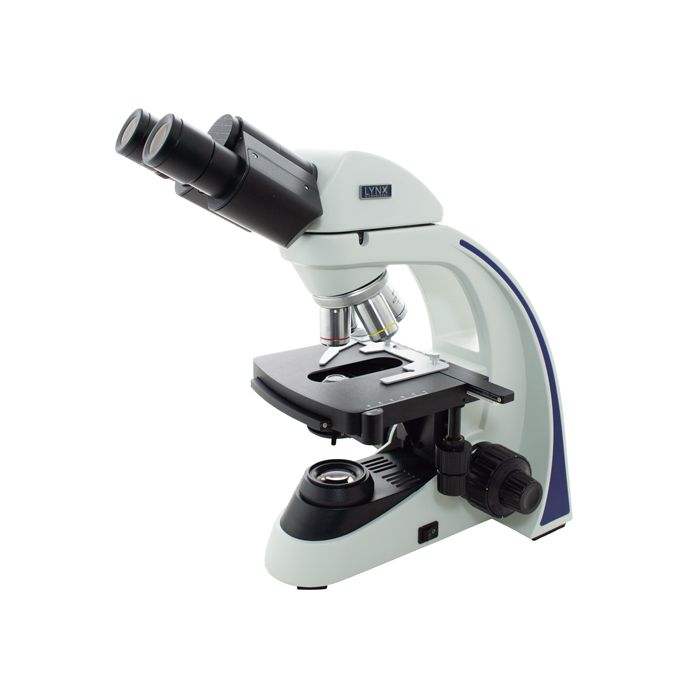

Quantum BM Binocular/Trinocular Biological Microscope Infinity Optics Plan Achromatic Objectives
Biological microscope with Seidentopf binocular or trinocular head — model dependent — 30° inclination, 50-75 mm interpupillary adjustment and 360° rotation. Infinity-corrected optical system with WF10X/20 mm eyepieces and plan infinity achromatic objectives 4X, 10X, 40X and 100X (oil) with anti-fungal treatment. Double-layer mechanical stage 155 x 142 mm, X-Y travel 76 x 50 mm and 0.1 mm Vernier scale. Coaxial coarse/fine focus with 0.002 mm precision. Abbe condenser N.A. 1.25 with iris diaphragm. Adjustable 3W LED illumination. Universal input 100-240 V. 2-year warranty.
In stock
SKU:
125044
Portes gratis
+150€ Península y Baleares
+150€ Península y Baleares
Múltiples formas de
pago
pago
Condiciones especiales
escuelas y universidades
escuelas y universidades
Distribuidores
oficiales
oficiales
| SKU | Product Name | Price | Qty | |
|---|---|---|---|---|
| MP03-002-001 | Quantum BM Superior Biological Microscope binocular head |
€955.20
|
|
|
| MP03-003-001 | Quantum BM Superior Biological Microscope trinocular head |
€1,104.00
|
|
|
| MPAC-006-001 | Ocular WF20x Quantum BM |
€21.13
|
|
|
| MPAC-016-001 | Obj. plan acrom. inf. 20x Quantum BM |
€79.50
|
|
|
| MPAC-017-001 | Obj. plan acrom. inf. 60x Quantum BM |
€212.00
|
|
|
| MPAC-019-001 | Adaptador C mount 0.5x p. puerto trinoc. Q. BM |
€90.10
|
|
|
| MPAC-030-001 | Kit contraste fase torreta p. Quantum BM |
€1,166.00
|
|
Quantum BM Binocular/Trinocular Biological Microscope Infinity Optics
Biological microscope with infinity-corrected optical system. Available in binocular or trinocular configuration depending on model. Built for extended use in biology, microbiology, histology and quality control laboratories.
Optical System
- Head: Seidentopf binocular or trinocular, 30° inclination, 360° rotation
- Interpupillary adjustment: 50-75 mm
- Eyepieces: WF10X/20 mm
- Nosepiece: Quadruple reversed
- Objectives: Plan infinity achromatic 4X, 10X, 40X and 100X (oil immersion)
- Objective treatment: Anti-fungal coating on all objectives
Stage and Focus
- Mechanical stage: Double-layer, 155 x 142 mm
- X-Y travel: 76 x 50 mm
- Vernier scale: 0.1 mm
- Coaxial focus: 0.002 mm precision with tension adjustment
Illumination and Condenser
Centrable Abbe condenser N.A. 1.25 with iris diaphragm. 3W LED illumination with variable intensity — no residual heat at the specimen and lower power draw than halogen systems.
Technical Data
- Power supply: 100-240 V, 50/60 Hz
- Illumination: Adjustable 3W LED
- Condenser: Abbe N.A. 1.25
- Warranty: 2 years
- Included accessories: Dust cover, fuse and filters
Applications
Examination of histological preparations, cell cultures, microbiological analysis and university teaching. The trinocular version accepts a camera for documentation or on-screen work without affecting ocular observation.
| Brand | LYNX Microscopes |
|---|
