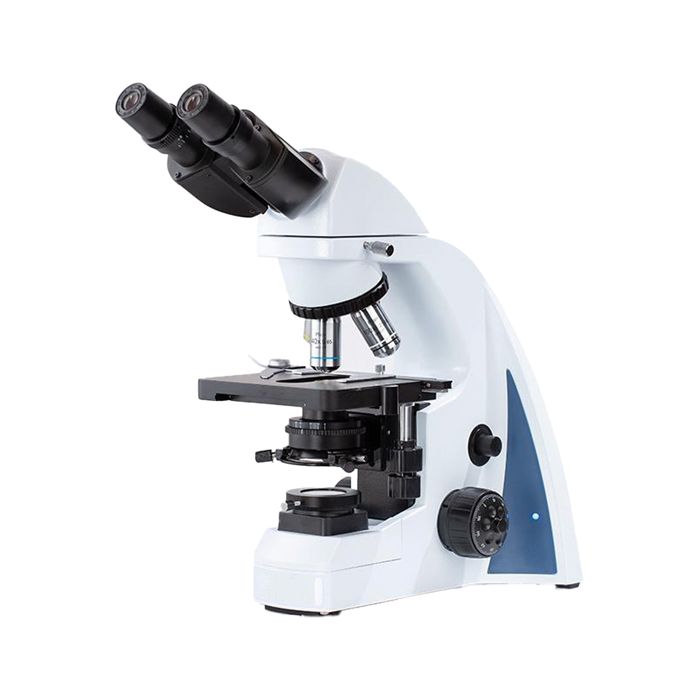

Quantum Pro Biological Microscope binocular/trinocular infinity optics plan achromatic objectives 4X-100X
Binocular or trinocular biological microscope with infinity-corrected optical system and Seidentopf head, 30° inclination, 47-75 mm interpupillary adjustment, 360° rotation. WF10X/20 mm eyepieces and reversed quadruple nosepiece with ball bearings. Plan achromatic infinity objectives 4X, 10X, 40X and 100X (oil) with antifungal coating. Double-layer mechanical stage 140x140 mm, X-Y travel 75x50 mm, Vernier 0.1 mm. Coaxial coarse/fine focus with micrometric precision of 0.002 mm. Centrable Abbe condenser N.A. 1.25. Variable LED illumination. 100-240 V. 2-year warranty.
In stock
SKU:
138256
Portes gratis
+150€ Península y Baleares
+150€ Península y Baleares
Múltiples formas de
pago
pago
Condiciones especiales
escuelas y universidades
escuelas y universidades
Distribuidores
oficiales
oficiales
| SKU | Product Name | Price | Qty | |
|---|---|---|---|---|
| MPAC-060-001 | Quantum Pro plan objective 20x/040 |
€71.30
|
|
|
| MPAC-061-001 | Quantum Pro plan objective 60x/080 |
€190.90
|
|
|
| MPAC-063-001 | Quantum Pro WF20x eyepiece |
€64.40
|
|
|
| MPAC-064-001 | Quantum Pro WF25x eyepiece |
€73.60
|
|
|
| MPAC-065-001 | Quantum Pro polarizer and analyzer |
€87.40
|
|
|
| MPAC-066-001 | Quantum Pro type C 05X adapter |
€92.00
|
|
|
| MPAC-067-001 | Quantum Pro turret kit for phase contrast |
€1,012.00
|
|
|
| MPAC-068-001 | Quantum Pro epi-fluorescence kit |
€2,999.00
|
|
|
| MP04-002-001 | Quantum Pro microscope binocular head |
€1,205.16
|
|
|
| MP04-003-001 | Quantum Pro microscope trinocular head |
€1,301.96
|
|
Quantum Pro Biological Microscope binocular/trinocular infinity optics
Biological microscope available in binocular or trinocular configuration. Infinity-corrected optical system — minimises aberrations and allows accessories to be inserted into the optical path without degrading image quality. Seidentopf head inclined at 30°, 360° rotation, interpupillary adjustment 47-75 mm to accommodate any user.
Optical system
- Eyepieces: WF10X/20 mm
- Nosepiece: Reversed quadruple with ball bearings — smooth rotation and repeatable positioning
- Objectives: Plan achromatic infinity 4X, 10X, 40X and 100X (oil immersion)
- Coating: Antifungal treatment on all objectives
Stage and focus
- Mechanical stage: Double-layer, 140 x 140 mm
- X-Y travel: 75 x 50 mm with Vernier scale, precision 0.1 mm
- Focus: Coaxial coarse/fine with tension adjustment and safety stop
- Micrometric precision: 0.002 mm
Illumination and condenser
- Condenser: Centrable Abbe N.A. 1.25 with position scale
- Illumination: S-LED, variable intensity
- Power supply: 100-240 V, 50/60 Hz — compatible with any mains supply
Typical applications
Cell morphology, histology, clinical microbiology and quality control in analytical laboratories. The trinocular version accepts a camera for documentation and image capture without affecting the observer's optical path.
Supplied with
Delivered complete: dust cover, blue, green and grey filters, spare fuse and hand rest. 2-year warranty.
| Brand | LYNX Microscopes |
|---|
