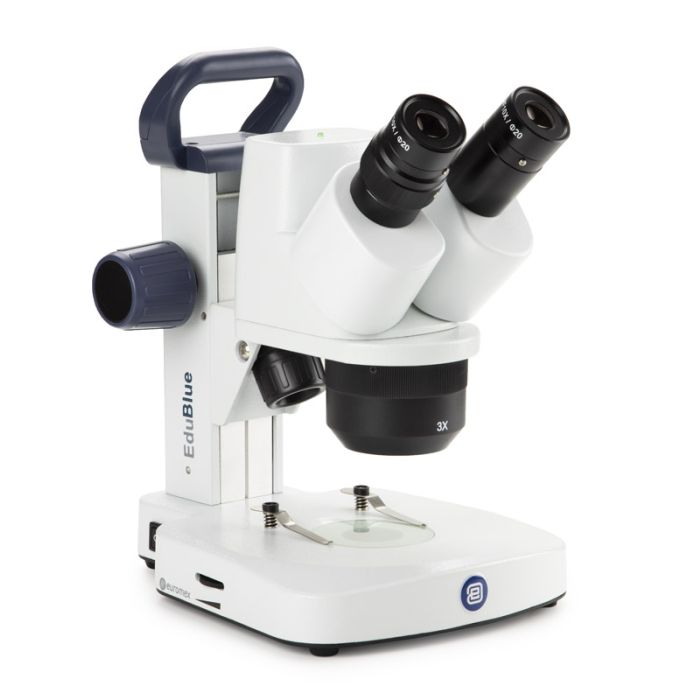

EduBlue Binocular Digital Stereo Microscope 5.1 MP 10x/30x USB-2 with ImageFocus Plus Software
Binocular digital stereo microscope with 45° inclined head and integrated USB-2 CMOS camera, 5.0 MP. Resolution 2560 x 1920 pixels at 30 fps, 24-bit colour. 1x/3x objectives with 10x and 30x magnification, 60 mm working distance. Flat base with reversible black/white stage plate Ø 60 mm and stage clips. Supplied with ImageFocus Plus software for image capture and analysis. Compatible with Windows 7, 8, 10 and Mac OS.
In stock
SKU:
ED.1305-S
€531.00
EduBlue Binocular Digital Stereo Microscope 5.1 MP 10x/30x
Euromex EduBlue series binocular stereo microscope with 5.0 MP CMOS camera integrated into the head. USB-2 connection for immediate live imaging—no external adapters required.
Optics and Head
- Eyepieces:Pair WF10x / 20 mm with rubber eyeguards
- Head:Binocular, 45° inclined tubes
- Dioptre adjustment:±5 on one eyepiece tube
- Interpupillary distance:Adjustable 55–75 mm
- Twin objectives:Turret 1x/3x or 2x/4x, standard magnifications 10x/30x or 20x/40x
- Triple objectives (optional):1x/2x/3x or 1x/2x/4x, magnifications 10x/20x/30x or 10x/20x/40x
- Working distance:60 mm
- Field of view:20/6.7 mm or 10/5 mm depending on configuration
- Optical treatment:Anti-reflection and anti-fungal coatings on all optics
Digital Camera
- Sensor:CMOS 1/2.8 inch, 5.0 MP
- Maximum resolution:2560 x 1920 pixels
- Colour depth:24 bit
- Frame rate:Up to 30 frames per second
- Connection:USB-2
- Camera warranty:2 years
ImageFocus Plus Software
Supplied as standard. Supports live view, still image capture and video recording. Measurements can be taken on live or captured images—annotations and full image analysis included.
- Image formats:.jpg, .tif, .bmp, .dicom
- Video format:.avi
- Compatibility:Windows 7, 8 and 10 (32 and 64 bit), Mac OS available
- Updates:Downloadable from the Euromex website
Stand and Base
- Base:Flat, ergonomic design
- Stage plate:Transparent and reversible black/white, Ø 60 mm
- Stage clips:2 included
- Focus:Coarse focus with adjustable tension control
- APL:Antibacterial coating applied to all contact areas—limits bacterial and mould growth
Supply
Supplied with ImageFocus Plus software, USB-2 cable and 1 mm / 100 division calibration slide.
| Brand | Euromex |
|---|---|
| Increases | 10/30 |
| Head | Digital 5.1 MP binocular |
| Objectives | Objetivo doble |
| Eyepieces | WF10x / 20 mm |
| Revolver | 1 |
| Focus | Macro y micrométricos |
| Type of microscope | Estereoscopio |
