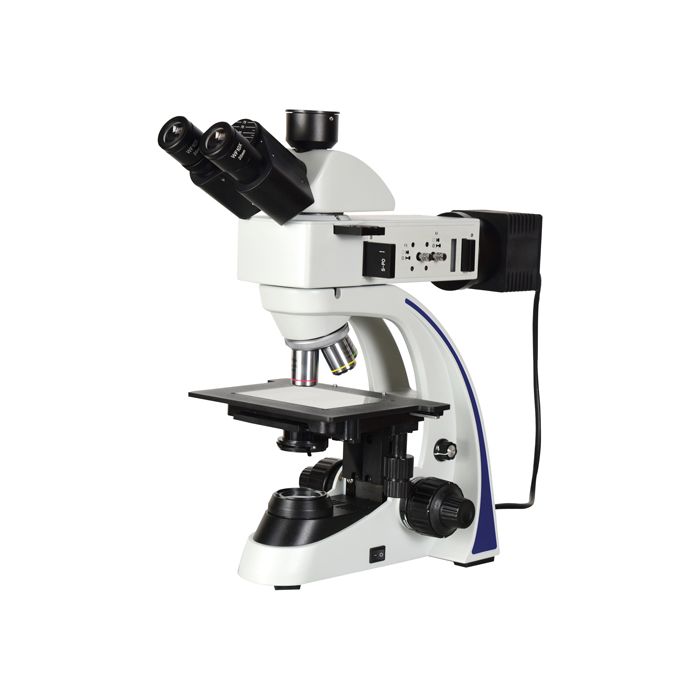

Quantum BM Metallurgical Microscope — Binocular and Trinocular

Metallurgical microscope for analysis of opaque and semi-transparent materials. Covers advanced metallography, alloy inspection and microstructure examination. Available in binocular and trinocular configurations.

Optics and head

• Optical system: Infinity colour-corrected
• Head: Binocular or trinocular, inclined 30°
• Interpupillary adjustment: 54–75 mm
• Dioptre: ±5
• Image split (trinocular): R:T = 50:50
• Eyepieces: WF10X/20 mm wide-field
• Objectives: Metallurgical plan achromatics 5X, 10X, 20X and 50X, long working distance, antifungal-treated
• Nosepiece: Quadruple reversed

Illumination

Dual integrated system — no external modules required.

• Reflected illumination: 5W LED Köhler-type, adjustable
• Transmitted illumination: 3W LED, adjustable

Köhler configuration ensures uniform illumination across the sample.

Stage and focus

• Stage: Double-layer mechanical with glass insert, 190 x 150 mm
• Travel: 76 x 50 mm
• Focus: Coaxial with tension adjustment and mechanical stop
• Fine focus precision: 0.002 mm

Included accessories

• Condenser: Abbe N.A. 1.25 with centrable iris diaphragm
• Polariser and analyser: 360° rotation

Technical data

• Power supply: 100-240 V, 50/60 Hz
• Warranty: 2 years
