VISION+ Petrographic Microscope monocular/binocular polarised light LED achromatic objectives 4X–100X
Petrographic microscope for mineral, rock and birefringent material analysis. Available in monocular (45° head) and binocular (30° head) configurations, both with 360° rotation and WF10X/18 mm eyepieces. Quadruple nosepiece with DIN 45 mm achromatic objectives: 4X, 10X, 40X and 100X. Circular rotating stage Ø160 mm graduated in 1° increments with 6' resolution via Vernier scale. Rotating analyser 0–90°, 1/4 λ and first-order red compensators, sliding Bertrand lens. Abbe condenser N.A. 1.25, dimmable 1W LED illumination, 100–240 V. 2-year warranty.
In stock
SKU:
138234
Portes gratis
+150€ Península y Baleares
+150€ Península y Baleares
Múltiples formas de
pago
pago
Condiciones especiales
escuelas y universidades
escuelas y universidades
Distribuidores
oficiales
oficiales
| SKU | Product Name | Price | Qty | |
|---|---|---|---|---|
| MP02-P01-001 | Vision petrographic microscope monocular head |
€653.40
|
|
|

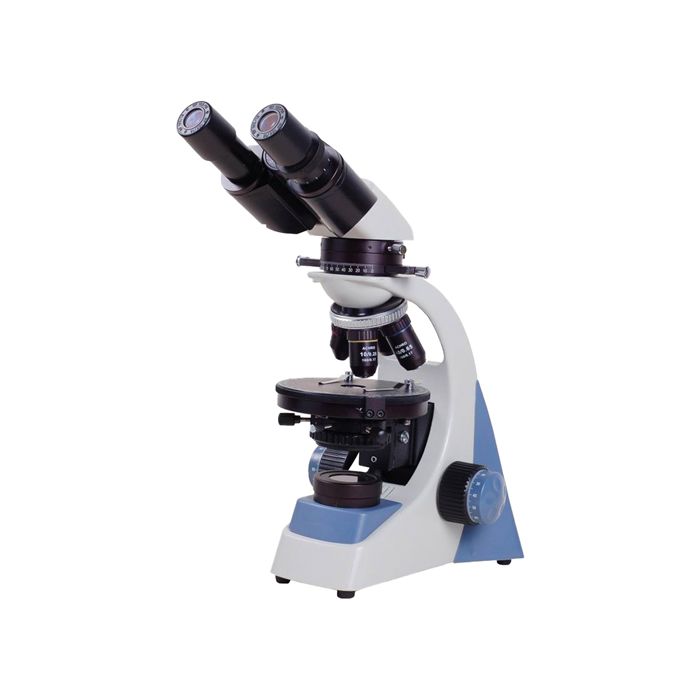

| MP02-P02-001 | Microscopio petrográfico Vision+ cabezal binocular |
€750.20
|
|
VISION+ Petrographic Polarising Microscope
Petrographic microscope for the study of minerals, rocks and anisotropic materials in thin section. Available in monocular and binocular configurations. The complete optical train—polariser, analyser, compensators and Bertrand lens—supports both plane-polarised light observation and interference figure analysis in convergent light.
Optics and head
- Eyepieces: WF10X/18 mm
- Monocular head: 45° inclined, 360° rotation
- Binocular head: 30° inclined, 360° rotation
- Nosepiece: Quadruple
- Objectives: Achromatic DIN 45 mm — 4X, 10X, 40X and 100X
Polarisation and analysis system
- Polariser: Rotating, adjustable
- Analyser: Rotating 0–90°
- Compensators: 1/4 λ plate and first-order red plate
- Bertrand lens: Sliding, for interference figure analysis
Stage and focus
- Stage: Circular rotating Ø160 mm
- Graduation: 1° increments, minimum resolution 6' via Vernier scale
- Focus: Coaxial coarse and fine, precision 0.01 mm
- Condenser: Abbe N.A. 1.25 with iris diaphragm
Illumination and technical data
- Light source: 1W LED with intensity control
- Power supply: 100–240 V, 50/60 Hz
- Warranty: 2 years
Applications
Field and laboratory geology and petrography, optical mineralogy, quality control of anisotropic industrial materials, undergraduate and postgraduate teaching in Earth sciences. The Bertrand lens allows rapid switching between orthoscopic and conoscopic observation for determination of the optical sign of minerals.
| Brand | LYNX Microscopes |
|---|
