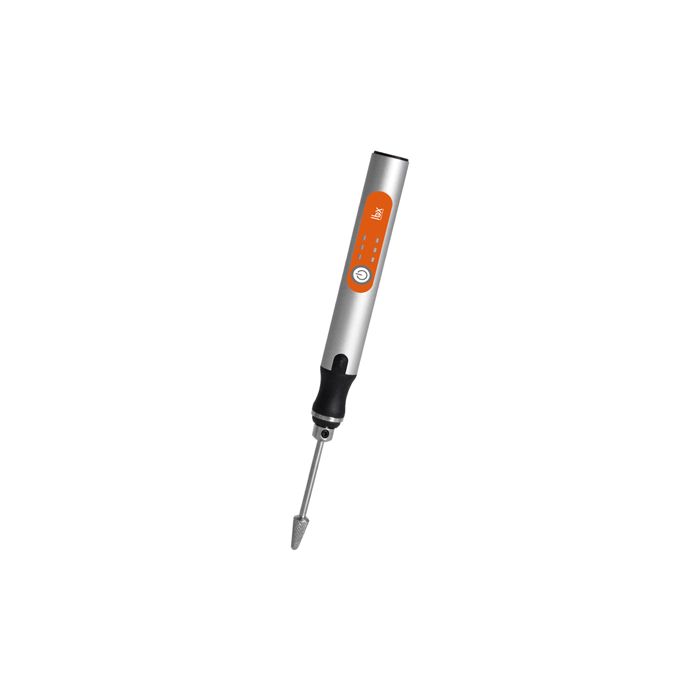

TH-1 Portable Mini Tissue Homogeniser

Handheld homogeniser designed for rapid disruption of small biological samples: animal and plant tissues, bacterial cultures. Three selectable speeds and a rechargeable battery—no cables required.

Key features

• Speeds: 5000 rpm, 10000 rpm and 18000 rpm (3 levels)
• Maximum volume: 2 ml
• Probe: Stainless steel, sterilisable
• Battery: Internal rechargeable, 1-hour runtime
• Weight: 0.086 kg, single-handed operation
• Dimensions (L x Ø): 125 x 16 mm
• Warranty: 2 years

Applications

Suited to small-volume work where a benchtop unit is impractical. Typical uses include DNA/RNA extraction, cell lysate preparation, biopsy disruption and field sampling where mains power is unavailable.

At 18000 rpm, the unit processes fibrous or dense tissues that resist lower speeds. For sensitive samples, 5000 rpm limits thermal and shear degradation.

Technical specifications

• Model: TH-1
• Maximum speed: 18000 rpm
• Selectable speeds: 5000 / 10000 / 18000 rpm
• Sample volume: Up to 2 ml
• Probe material: Stainless steel
• Probe sterilisation: Yes
• Power supply: Internal rechargeable battery
• Battery runtime: Up to 1 hour
• Dimensions (L x Ø): 125 x 16 mm
• Weight: 0.086 kg
• Warranty: 2 years

Practical advantages

Pen-format body fits inside biosafety cabinets without obstruction. Sterilisable stainless steel probe eliminates cross-contamination between runs. Rechargeable battery supports use in the field or in labs without convenient mains access.
