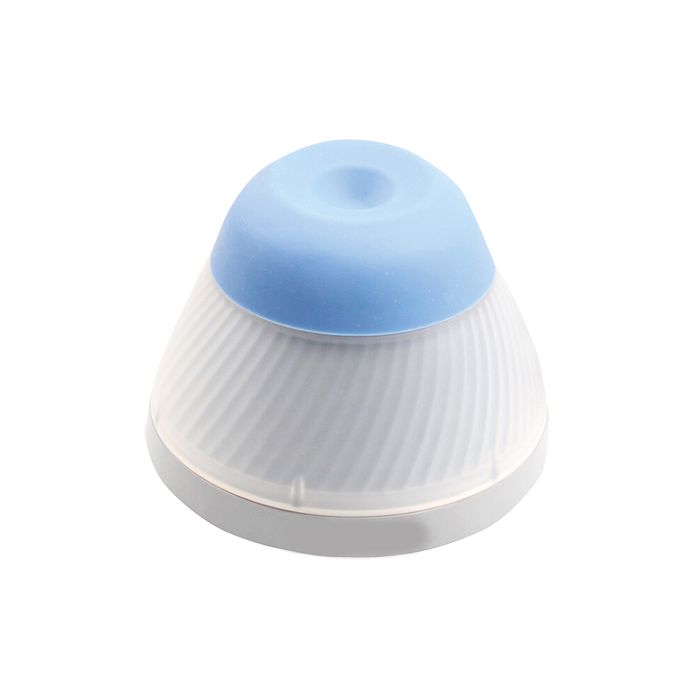

Mini Vortex Mixer V03 Fixed Speed 3000 rpm Touch-Activated

Benchtop vortex mixer for fast, straightforward mixing. Press the tube onto the cup head to start; release to stop. Fixed speed of 3000 rpm covers the majority of routine applications in small-format vessels.

Technical Specifications

• Speed: 3000 rpm, fixed
• Orbital diameter: 5.5 mm
• Operating mode: Intermittent, touch-activated on cup head
• Compatible vessels: Up to Ø30 mm
• Dimensions (Ø x h): 100 x 78 mm
• Power supply: 100–240 V / 50–60 Hz
• Internal voltage: 12 V (low-voltage operation)
• Protection rating: IP42 (DIN EN60529)
• Warranty: 2 years

Typical Applications

Resuspension of precipitates, sample homogenisation in Eppendorf tubes and vials, rapid preparation of reagents in test tubes. Routinely used in molecular biology, microbiology and quality control laboratories where bench space is at a premium.

Stability and Safety

Patented feet keep the unit planted during operation — no walking on the bench. Internal 12 V operation reduces electrical risk in wet environments. IP42 rating provides protection against lateral splashes.

Why the V03

The smallest footprint in the range. 100 mm diameter, 78 mm tall. No variable speed, no interchangeable head — if you don't need them, no reason to pay for them. For tube-to-tube mixing on a tight bench, the V03 does the job without complication.
