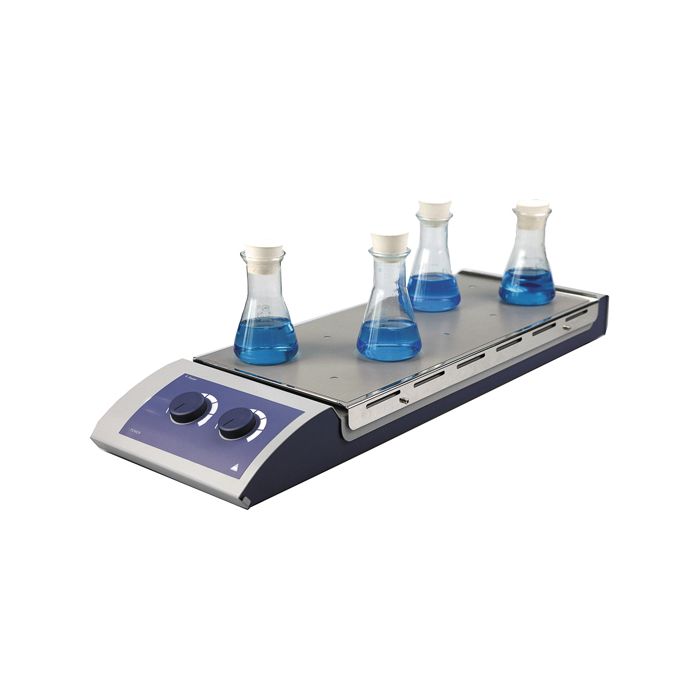

Multiple Magnetic Stirrer with Heating H04X10 10-Position 0–1100 rpm
Ten heated stirring positions in a single unit. The practical answer when bench space is tight. Plate temperature adjustable to 120 °C; fluid temperature up to 70 °C depending on vessel type. Speed range 0–1100 rpm, uniform across all positions. Per-position capacity: 0.4 L. Stainless steel plate 180 x 450 mm with non-slip silicone coating. Brushless motor—maintenance-free. IP42 (DIN EN60529). 200–240 V / 50–60 Hz. 2-year warranty.
In stock
SKU:
25370
As low as:
€1,601.44
As low as:
Multiple Magnetic Stirrer with Heating H04X10 10-Position
Ten heated stirring positions for running multiple series simultaneously. The H04X10 addresses bench space constraints without sacrificing uniformity across positions.
Technical Specifications
- Number of positions: 10
- Speed: 0–1100 rpm, adjustable
- Plate temperature: up to 120 °C
- Fluid temperature: max. 70 °C (dependent on vessel type)
- Capacity per position: 0.4 L
- Magnetic stir bars: up to 40 mm
- Stirring plate: 180 x 450 mm, stainless steel with silicone coating
- External dimensions (L x W x H): 622 x 182 x 65 mm
- Power supply: 200–240 V / 50–60 Hz
- Protection rating: IP42 (DIN EN60529)
- Motor: Brushless, maintenance-free
- Warranty: 2 years
Typical Applications
Solution transfers, solubility studies, incubations requiring gentle agitation. Well suited to QC laboratories, pharmaceutical, teaching, and microbiology settings.
Why the Silicone Coating Matters
Silicone over stainless steel holds vessels in place—no slipping during runs. It also protects the plate surface from corrosive spills and simplifies wipe-down between batches.
Brushless Motor
No mechanical wear parts. Reduced maintenance overhead, which matters when protocols run long or staffing is limited.
| Brand | LBX instruments |
|---|
