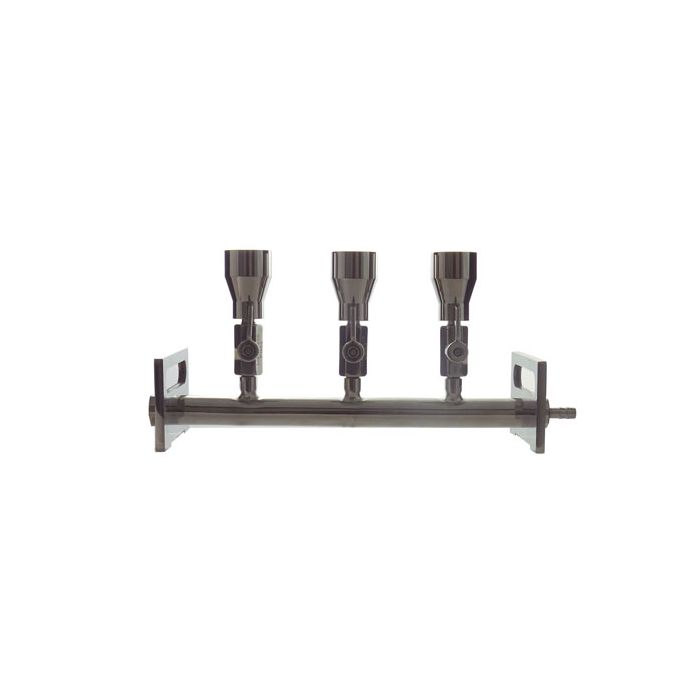

Stainless Steel Filtration Manifold — 3 and 6 Position

Stainless steel filtration manifold for parallel vacuum filtration. Available in two configurations: 3-position or 6-position, depending on laboratory throughput. Integrated lateral hose barb for direct connection to the vacuum system via tubing with 10 mm internal diameter.

Specifications

• Material: Stainless steel
• Positions: 3 or 6, depending on version
• Lateral hose barb: For vacuum tubing with 10 mm internal diameter
• Stopper compatibility: Filter holders with #8 stopper
• Autoclavable: Yes — remove O-rings before sterilisation cycle

Required Filter Holders

Each position requires one filter holder FUC3-047-001 or FUSS-047-001. The 3-position version requires 3 units; the 6-position version requires 6. Filter holders are not included with the manifold.

Typical Applications

Parallel vacuum filtration of multiple samples. Routinely used in microbiology, quality control, water analysis, and any environment where several samples are processed simultaneously. Stainless steel construction withstands repeated sterilisation cycles without degradation.

Setup and Compatibility

Connects directly to any filter holder with a #8 stopper — no additional adapters required. The lateral hose barb accepts standard 10 mm internal diameter vacuum tubing, compatible with most laboratory vacuum pumps.
