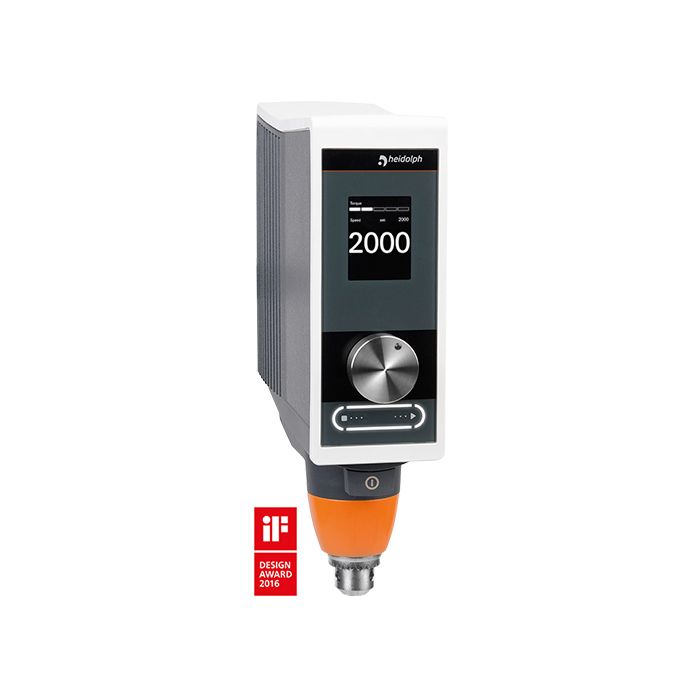

Hei-TORQUE Value 200 Overhead Stirrer — Electronic Speed Control

Heidolph overhead stirrer with electronic speed and torque control. Designed for mixing and dispersing high-viscosity media where magnetic stirrers are not sufficient. Maximum torque 200 N·cm, viscosities up to 100,000 mPas, volumes up to 50 L.

Key features

• Maximum torque: 200 N·cm
• Maximum viscosity: 100,000 mPas
• Maximum volume: 50 L
• Display: 2.4" digital
• Control: Touch panel with safe start/stop
• Speed: Constant under load variations

Applications

Mixing and dispersion of viscous materials—pastes, gels, and dense suspensions. On-screen torque tracking indicates viscosity changes during the process without external instrumentation.

Used in product development laboratories, quality control in the chemical, cosmetics and food industries, and R&D work with large-volume samples.

Technical data

• Model: Hei-TORQUE Value 200
• Maximum torque: 200 N·cm
• Maximum viscosity: 100,000 mPas
• Maximum stirring volume: 50 L
• Display: 2.4" digital
• Speed control: Electronic

Operation

The 2.4" display shows speed and torque simultaneously. Touch panel prevents accidental start-up. Electronic control maintains the set speed even as medium viscosity changes throughout the process.
