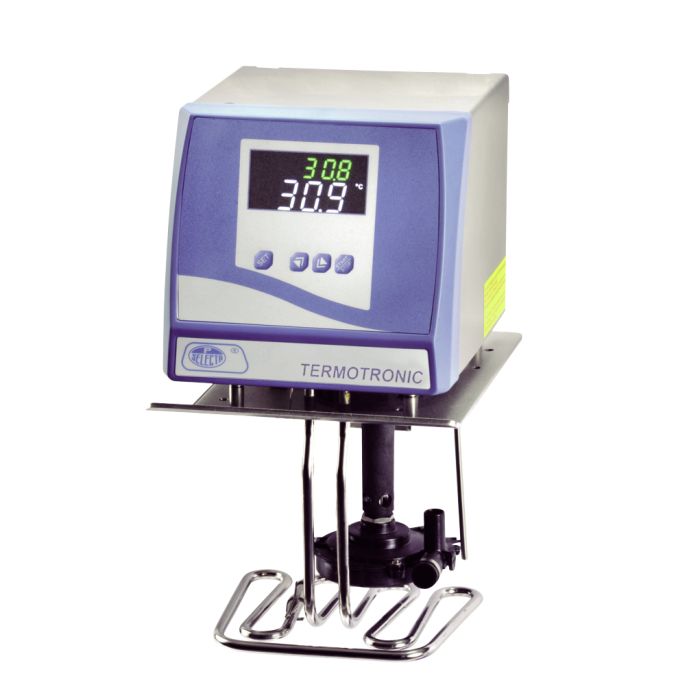

Termotronic 100 Digital Immersion Thermostat

Digital immersion thermostat for laboratory water baths up to 20 litres. Conforms to DIN 12879.1 with an adjustable safety thermostat and manual reset — useful when the bath is left unattended or when temperature-sensitive fluids are in use.

Key Specifications

• Maximum working volume: 20 litres at limit temperature
• Heating element: INCOLOY stainless steel
• Safety: Adjustable safety thermostat with manual reset, DIN 12879.1
• Minimum mounting depth: 14 cm
• Mounting: Rear clamp nut or extendable bracket (accessory)

Control Panel

Straightforward layout. Designed for the technician who sets up the bath without referring to the manual.

• Display 1: Temperature setpoint
• Display 2: Actual temperature or elapsed time
• SET button: Access to configuration parameters
• +/− buttons: Setpoint adjustment
• Start/Stop button: Unit start and stop

Typical Applications

Controlled-temperature baths in chemistry, biology, quality control and pharmaceutical laboratories. Compatible with tanks that accept immersion units — the extendable bracket accommodates different bath geometries without modification to the tank.

Safety

The adjustable safety thermostat acts as an independent second layer of protection. Manual reset only — the unit does not restart automatically after an over-temperature event. Compliant with DIN 12879.1.
