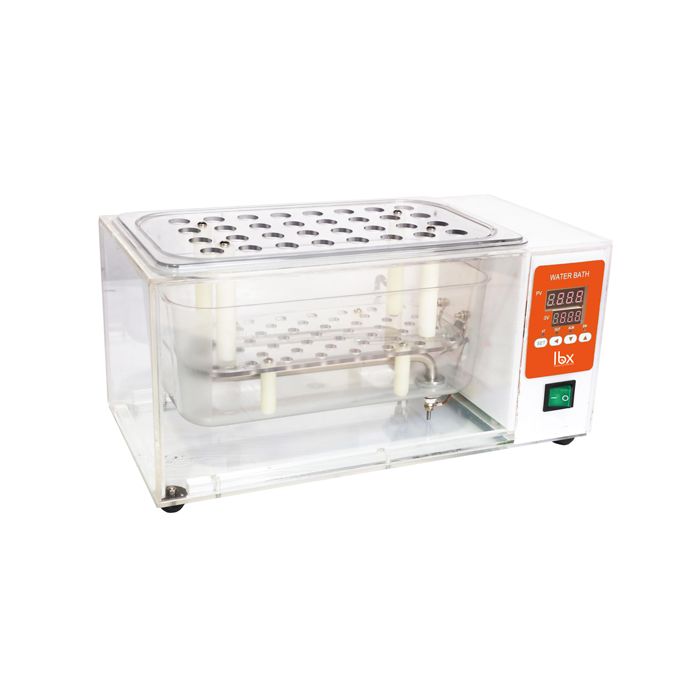

Replacement transparent lid for thermostatic water bath with tube rack and digital timer

Transparent plastic lid and housing for thermostatic water baths. Allows the heating process to be monitored without opening the bath. Suited for work with sensitive samples.

Key features

• Material: Transparent plastic for full visibility
• Tube rack: Accepts tubes up to 18 mm diameter
• Temperature range: Ambient +5 °C to 100 °C
• Resolution: 1 °C
• Timer: Digital, programmable 1 to 9999 min, continuous mode available
• Display: Dual readout — temperature and time
• Alarm: Integrated overheating alarm
• Power supply: 220 V ±10%; 50/60 Hz ±1
• Warranty: 2 years

Intended use

Direct replacement when the original water bath lid becomes damaged or deteriorates. The transparent plastic maintains visibility without compromising thermal performance.

The digital timer covers both short incubations and multi-day continuous runs. The overheating alarm provides protection for samples and equipment alike.

Technical data

• Minimum temperature: Ambient +5 °C
• Maximum temperature: 100 °C
• Temperature resolution: 1 °C
• Timer range: 1 – 9999 min
• Operating modes: Continuous / Timer
• Maximum tube diameter (rack): 18 mm
• Voltage: 220 V ±10%
• Frequency: 50/60 Hz ±1
• Warranty: 2 years
