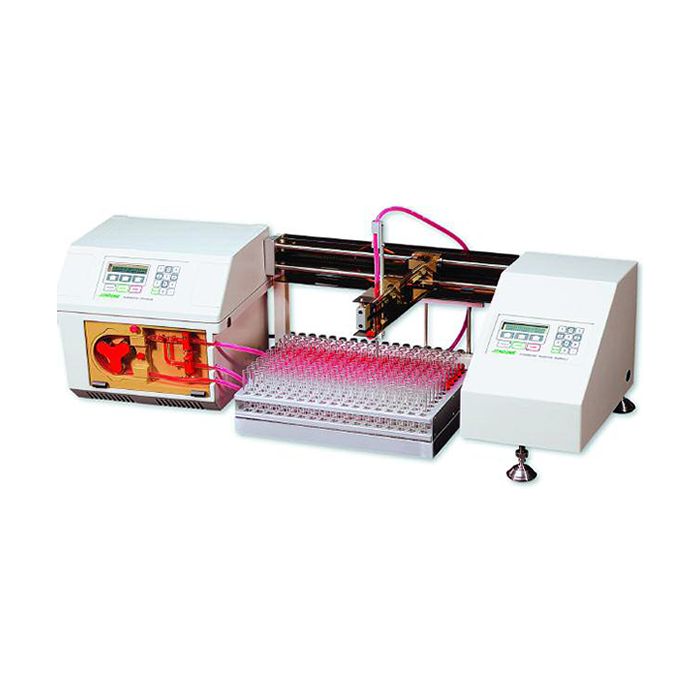

Robot-XY Module for Automated Filling with Perimatic Pumps

Two-axis positioning module designed to automate the filling of vials, bottles and tubes in conjunction with Perimatic pumps. Microprocessor control with up to 50 filling patterns stored in memory. Covers a working area of 420 x 245 mm at 0.1 mm resolution — sufficient precision for demanding filling lines.

Technical Specifications

• Filling area: 420 x 245 mm, measured from nozzle centre
• Resolution: 0.1 mm
• Filling points: 99 in X and 99 in Y
• Memory: Up to 50 filling patterns
• Max. speed: 120 mm/sec (excluding acceleration and deceleration times)
• Drip delay: 0 to 0.9 sec in 0.1 sec increments
• Nozzles: Precision stainless steel, Ø 3, 5 and 8 mm
• Feet: Adjustable, compatible with tubes up to 20 mm tall
• Ports: RS-232 and Perimatic pump connector
• Dimensions (H × W × D): 280 × 385 × 735 mm
• Weight: 14 kg
• Power consumption: 40 W
• Voltage: 220–240 V / 50 Hz — 110–120 V / 60 Hz

Applications

Serial filling of vials, tubes and bottles in pharmaceutical, quality control and research laboratories. Where sample volumes make manual filling impractical and positional repeatability at the dispensing point is required. The drip delay control prevents cross-contamination between containers.

Integration with Perimatic

The module connects directly to Perimatic pumps via its dedicated connector. Filling pattern programming is managed from the unit itself — no external software required for standard operations. The RS-232 input allows integration with process control systems where needed.
