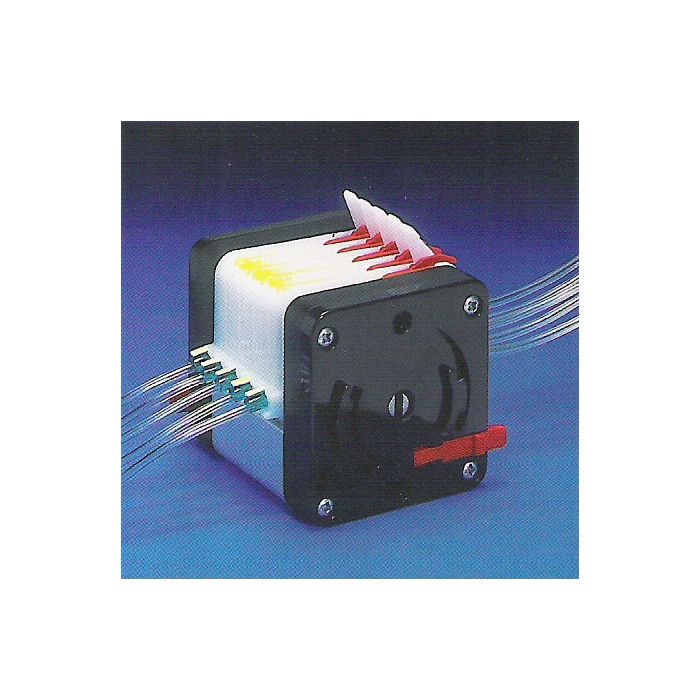

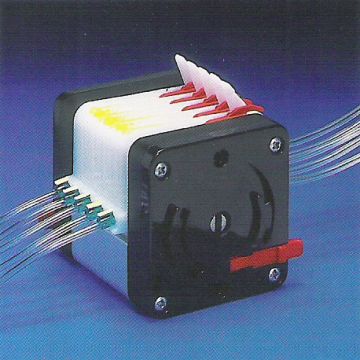

MMBC-8R Supplementary Head for Dinko Peristaltic Pump

Supplementary Multi Micro Bobbin head with 8-roller metal rotor. Designed to extend the channel count of the MMB primary head on Dinko peristaltic pumps. Each MMB head accepts up to three MMBC units — maximum of 15 operating channels on a single instrument.

Key features

• Rotor: Metal, 8 rollers — consistent multichannel dosing accuracy
• Bobbins: Hot-swappable under full operation without affecting active channels
• Coupling: Bayonet type — single-turn mounting and removal, no tools required
• Maximum channels: Up to 15 when combined with one MMB head and two additional MMBC units
• Tubing: Compatible with 20 available sizes; supplied in 30 or 40 cm lengths with bobbin fixing terminals
• Supply: Tubing not included

Compatibility

Compatible with Dinko peristaltic pump models D-25V and D-25VT fitted with a CF or MMB head. Speed range on these models is fixed between 50 and 100 rpm. Motors from 2.5 rpm available on request.

Tubing is available in Farmed, PVC and Silicone (Peroxide Cured) materials. Lengths of 30 or 40 cm include the bobbin fixing terminals.

Typical applications

Multichannel applications requiring independent, precise flow rates — perfusion chromatography, fermentation, reagent dispensing, or any process where tubing changes on one channel cannot halt the others.

Technical data

• Model: MMBC-8R
• Type: Supplementary head (non-standalone — requires MMB head)
• Rollers: 8
• Coupling: Bayonet
• Speed (D-25V / D-25VT): 50–100 rpm
• Compatible tubing sizes: 20
• Tubing materials: Farmed, PVC, Peroxide Cured Silicone
