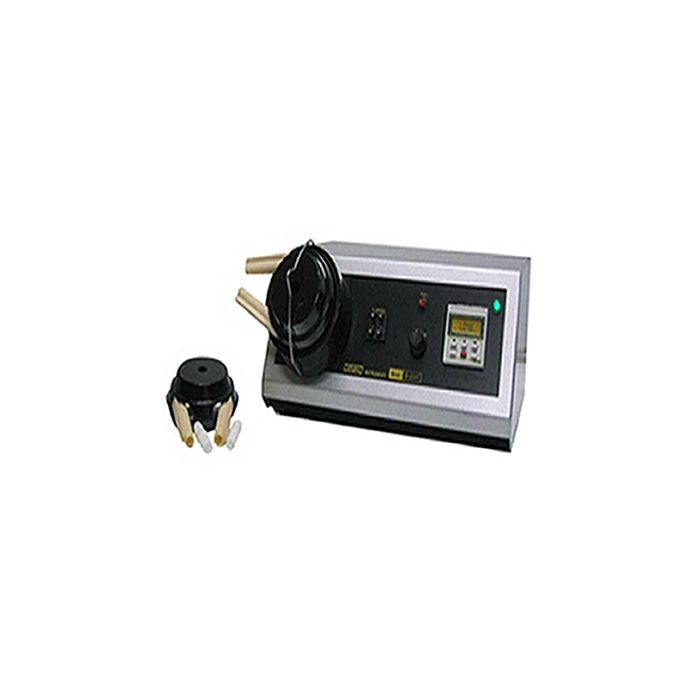

D-25VT Peristaltic Dispensing Pump with Cyclic Timer

The D-25VT is the cyclic-timer variant of the D-25V peristaltic pump. Flow rate is adjustable from 0.01 to 50 ml/min with 100% repeatability. Dispense time and stop time are programmed independently, making it suited to continuous automated dosing where the same volume must be reproduced cycle after cycle without operator intervention.

Key Specifications

• Flow rate: 0.01 to 50 ml/min
• Speed control: Digital, 0 to 99% in 1% increments
• Repeatability: 100%
• Timer: Cyclic — dispense time and stop time set independently
• Pump head: 2-roller polycarbonate rotor
• Flow reversal switch: Included
• Maximum flow pushbutton: Included
• Footswitch connection: Included
• Remote control: Included (0–10V versions available)
• Pilot light and main switch: Included
• Power supply: 230V 50/60 Hz
• Dimensions: 250 x 260 x 115 mm (W x D x H)
• Weight: 3 kg

Compatible Pump Heads

The pump accepts interchangeable heads depending on the application:

• Head L2000-3r: Cartridge design — tube is integral to the cartridge and released by a single retaining clip. Compatible with 8 mm tubing only.
• Head L1500-2r: For 2.4 mm wall tubing. Recommended for viscous products.
• Head 5000: Self-adjusting — compensates for tube wall wear during extended runs.
• CF quick-load head: Simplifies tube changes. The CF-3r configuration allows two heads to run simultaneously; tube diameter is limited to 4.8 mm in that setup.

Typical Applications

Repetitive automated dispensing on production lines, container filling, continuous reagent feeding, and any process requiring a constant dispensed volume per cycle. The footswitch connection lets operators start and stop the pump hands-free — standard practice at workstations where both hands are in use.

Supply Contents

An assortment of tubes and connectors is included. Also available in a rechargeable battery version and in a 0–10V remote control configuration.
