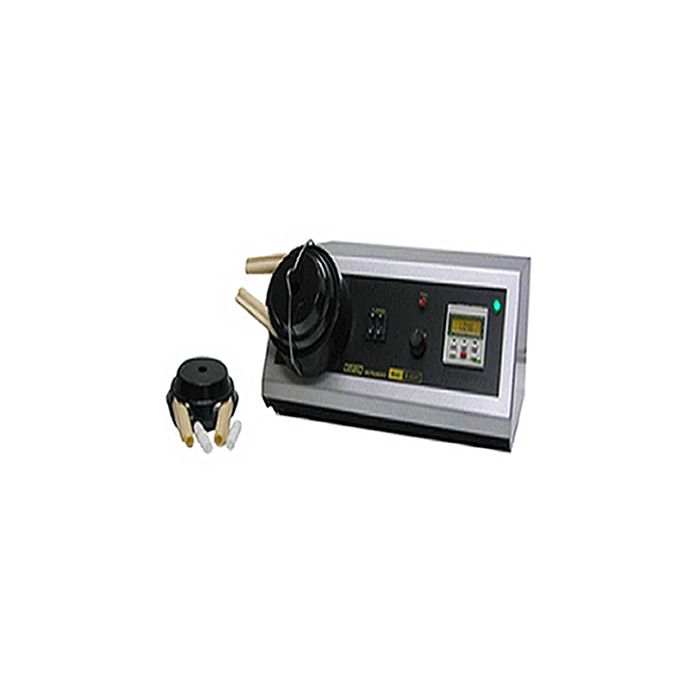

D-25VT CF-3R 270 Peristaltic Dispensing Pump with Cyclic Timer

Cyclic timer variant of the D-25V series. Retains all D-25V capabilities with the addition of programmable continuous and repetitive dosing — dispense time and stop time are set independently, delivering any target volume per cycle with full repeatability.

Control and Operation

• Flow rate: 1 to 1300 ml/min, adjustable
• Speed control: Digital, 0 to 99% in 1% increments
• Repeatability: 100%
• Timer: Cyclic — dispense time and stop time configured independently
• Flow reversal: Yes, direct panel control
• Maximum flow pushbutton: Included
• Remote control: Available; compatible with 0–10 V signal versions

CF-3R Head and Head Options

The CF quick-load head allows tool-free tubing changes. Three-roller metal rotor. The pump accepts two heads simultaneously — in this configuration, tubing diameter is limited to 4.8 mm.

• L2000-3R head: Cartridge with integrated removable tubing, released by a single retaining clip. Compatible with 8 mm tubing only
• L1500-2R head: For 2.4 mm wall tubing. Recommended for viscous products
• 5000 head: Self-adjusting — compensates for tubing wall wear during extended-duration runs

Technical Specifications

• Power supply: 230 V 50/60 Hz
• Dimensions (W x D x H): 250 x 260 x 115 mm
• Weight: 3 kg
• Rechargeable battery version: Available

Supplied With

Assortment of tubing and connectors included for immediate start-up.

Typical Applications

Continuous and repetitive dosing in filling processes, reagent transfer, bioreactor feeding, and any application requiring constant flow with programmed cycles. The rechargeable battery version is suited to field use or locations without mains power.
